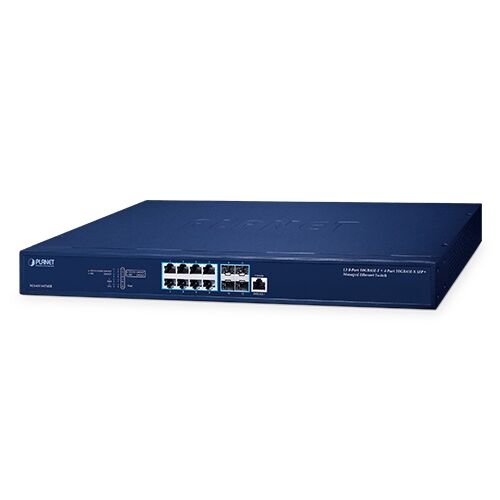

XGS-6311-8T4XR L3 8-Port 10GBASE-T + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch with Dual 100~240V AC Redundant Power

£699.00

Key Features

  • 8* 100/1G/2.5G/5G/10GBASE-T RJ45 auto-negotiation copper ports (Ports 1 to 8)
  • 4* 10GBASE-X SFP+ slots, compatible with 1G/2.5GBASE-SX/LX/BX SFP (Ports 9 to 12)
  • RJ45 type RS232 console interface for switch basic management and setup
  • USB port
  • IPv4 routing protocol supports RIPv1/v2 and OSPFv2
  • IPv6 routing protocol supports RIPng and OSPFv3
  • Routing interface provides per VLAN routing mode
  • Supports route redistribution
  • Quality of Service
  • Multicast features
  • Security features
  • Management features
CE UKCA FCC RoHS WEEE

Description

The PLANET XGS-6311-8T4XR is a fully managed, all-port 10Gbps Ethernet switch that can be combined with PLANET UNI-NMS,  to make network management easier and more efficient. It is designed for Wi-Fi 6/6E/7 wireless APs, NAS and workstations that require high bandwidth. It features 8 10GBASE-T RJ45 ports and 4 10GBASE-X SFP+ fiber optic ports that are flexibly designed to extend the connection distance.

The XGS-6311-8T4XR provides high-density performance, Layer 3 IPv4/IPv6 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First), with 10Gbps interfaces.

Through the PLANET UNC-NMS, administrators can centrally manage a network of up to 102,400 nodes from a central office, thereby greatly improving network and power management efficiency. With its user authentication management, combined with the UNI-NMS, the security of data transmission in modern factory automation systems is enhanced.

The XGS-6311-8T4XR supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 15ms to quickly bring the network back to normal operation.

The XGS-6311-8T4XR supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
