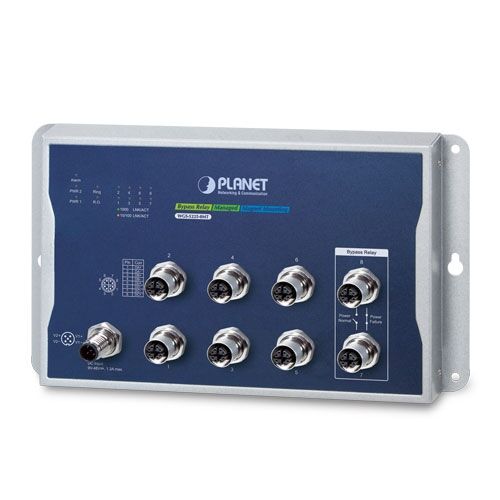

WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch

Description

PLANET WGS-5225-8MT managed switch offers eight 10/100/1000BASE-T M12 ports and is housed in an IP40-rated enclosure with redundant 9-48 VDC power inputs. Designed to be deployed in  the industrial environments, the WGS-5225-8MT offers wire-speed throughput, shock and vibration proofing, and a wide -40° to 75°C operating temperature range.

The WGS-5225-8MT offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-5225-8MT is able to operate reliably, stably and quietly in railway and other industrial applications subject to shock, vibration and other extreme conditions without affecting its performance. Besides, the WGS-5225-8MT with bypass relay ports ensure non-stop data flow even in the event of a power outage.

Bypass relay is set to bypass the failed switch to the next normal switch to prevent the network from power loss. The WGS-5225-8MT supports the bypass relay function on the one pair of Gigabit ports. When the switch is operating normally, the Gigabit ports operate in the same way as the other ports, processing and forwarding Ethernet packets. Bypass relay ports allow network traffic to continue to flow in the event of a power outage. It also can go back to the normal mode when power is back and the switch is completely booting up to avoid another network loss.

The WGS-5225-8MT is equipped with 8-port 10/100/1000BASE-T, auto-negotiation, vibration-proof, waterproof and dustproof M12 connector. The M12 connector provides tight and strong connection, and guarantees stable Ethernet operating performance in a high vibration and shock environment. It comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.
