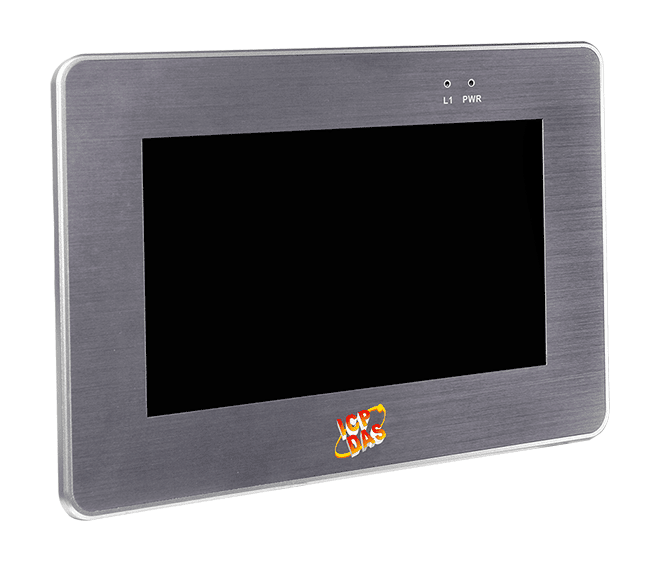

VPD-170-IRT IR Temperature data concentrator

Name: VPD-170-IRT IR Temperature data concentrator
Brand: simple
Availability: InStock

£459.00

Add to quote

Key Features

High-resolution color touch screen
Front Panel: IP65 Waterproof
Provide setting Temperature threshold value function
9 Signal Relay Output channels for Alarm
Provide Thermography
Connect up to 31 iSN-81x-MRTU series module
Support Modbus TCP/RTU protocol

Description
Datasheets

Description

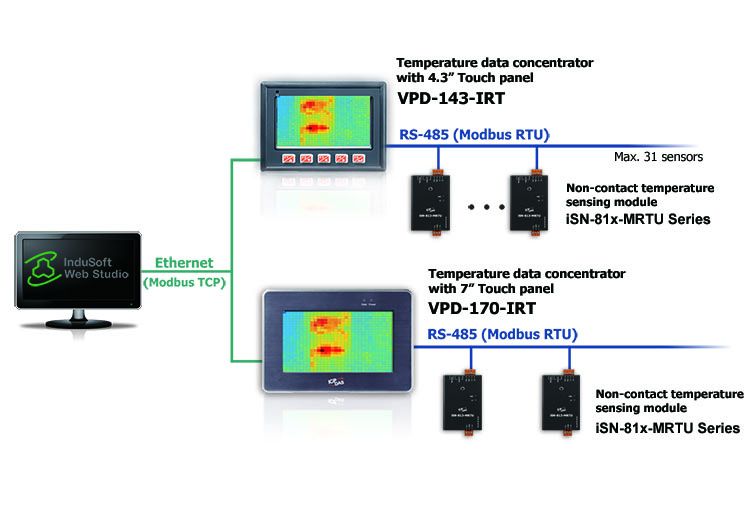

The ICP DAS VPD-170-IRT supports 8 Modbus TCP connections, allowing remote monitoring hosts to connect to VPD-170-IRT via Ethernet and access temperature data of multiple iSN-81x-MRTUs at one time.

Users can set various functions of iSN-81x-MRTU and VPD-170-IRT from the touch screen of VPD-1xxIRT, and can also immediately see the temperature and thermal image of the measured object.

Through the convenient connection and communication capabilities between the VPD-170-IRT temperature data concentrator and the Ethernet network, users can quickly establish a remote monitoring system and conduct centralized management of temperature data.

Applications

VPD-170-IRT_datasheet_en
