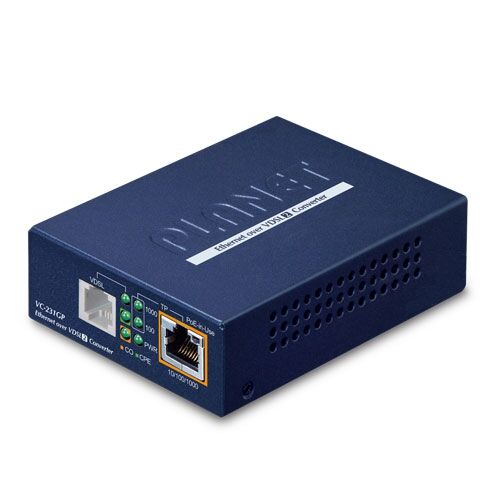

VC-231GP 1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter (30a profile w/G.Vectoring)
£169.00
Key Features
- 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af/802.3at PoE Injector
- 1 RJ11, connector for xDSL port with VDSL2 or ADSL2+ connection
- Power over Ethernet
- VDSL2 stand-alone transceiver for simple bridge modem application
- Cost-effective bridge function to connect two Ethernet LANs
- Point-to-multipoint application: Compatible with PLANET and third-party VDSL2 IP DSLAM for last-mile solution
- Point-to-point application: LAN to LAN extension over phone wire
- Up to 150/150Mbps bandwidth (in G.INP, Sym, 8dB mode)
- Compact size, wall-mountable design; ideal solution for space-limited locations
- Advantage of minimum installation time (Simply by Plug and Play)
- Metal case, good for heat sinking
- Supports extensive LED indicators for network diagnosis
- Additional POTS splitter to share voice and data
- Supports 6KV DC Ethernet ESD protection
Description
The VC-231GP, a PLANET Long Reach Ethernet (LRE) solution, is a Single-port Gigabit Ethernet-over-VDSL2 Converter with PoE injector function that is installed at a remote location connecting and injecting power to a PoE IP camera, PoE wireless AP, or PoE IP VoIP phone/door phone. It is integrated with three advanced technologies – VDSL2/ADSL2+ Digital Subscriber Line technologies, Gigabit Ethernet and IEEE 802.3at Power over Ethernet Plus.
The VC-231GP works with PLANET VDSL2 converters or multiple-channel VDSL2 switches to be able to simultaneously transmit Ethernet data over a distance of up to 1.4km (4,593ft) over phone wire. The VC-231GP forwards the Ethernet data and provides a maximum of 30-watt power output over an additional 100m UTP cable to a remote IP device complied with 802.3af/at PoE PD (powered device) for network deployment. Users have the ability to grow the structure of the current networks simply with even more flexibility.
Via the latest VDSL2 technology, the VC-231GP offers selectable asymmetric/symmetric band profile capability. It works well with a pervasive telephone line network with a symmetric data rate of up to 150/150Mbps (G.INP, Sym, 8dB) over a distance of 300m and 21/11Mbps over a long distance of 1.4km. PLANET Gigabit Ethernet over VDSL2 series offers absolutely the fastest data transmission speed over the existing copper telephone lines without the need of rewiring.
PLANET Gigabit Ethernet-over-VDSL2 converters come with a plug-and-play design. The VC-231GP offers two operation modes, CPE and CO, for application — CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch.
For point-to-point connection, the VC-231GP in the CPE mode and the VC-231G or VC-234G in the CO mode must be set up as one pair of converters to perform the connection. It gives administrators the ability to reply a fresh local Intranet in various locations by utilizing the original network structure without additional costs.
