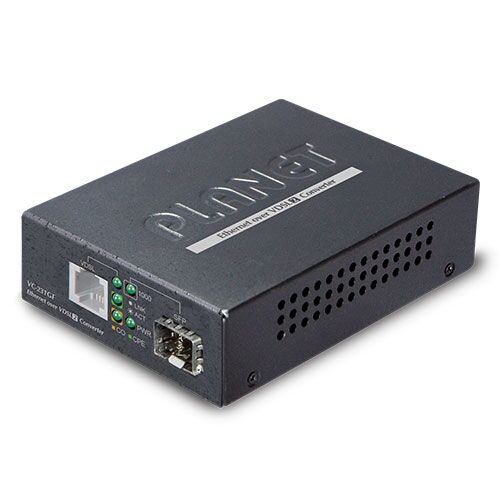

VC-231GF 1-Port 1000BASE-X SFP + 1-Port RJ11 VDSL2 Converter (30a profile w/G.Vectoring)

Description

The VC-231GF, a PLANET Long Reach Ethernet (LRE) solution, is a Single-port Gigabit Ethernet-over-VDSL2 Converter for connecting ultra-fast FTTx deployment with the existing in-building and in-house telephone wire installation.

The VC-231GF features one 1000BASE-X SFP slot for remote optical fiber Ethernet connection and one RJ11 port with the VDSL2 technology to provide an excellent bandwidth of up to a total duplex data rate of 300Mbps and can extend a maximum distance of up to 1.4km (4,593ft) over existing telephone wire to the in-house VDSL2 router or bridge, which overcomes in-house fiber installation problems.

The VC-231GF realizes ISPs (internet service providers) and SIs (system integrators) to deploy Gigabit Ethernet optical fiber cables in the front of the building or subscriber’s house and provide high-speed triple play services over existing telephone wire. They can simply upgrade their current networks without any difficulty.  Besides, its compact-sized metal housing makes the installation in a telecom box convenient.

With the built-in 1000BASE-X SFP (small form-factor pluggable) fiber interface, the VC-231GF supports different optic types for network extension and the distance can be up to 120 km through the fiber connection. Thus, building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) becomes so easy when long-distance deployment is employed.

PLANET Gigabit Ethernet-over-VDSL2 converters come with a Plug and Play design. The VC-231GF offers two operation modes, CPE for client side and CO for central side. The CPE or CO mode can be adjusted by using a built-in DIP switch.
