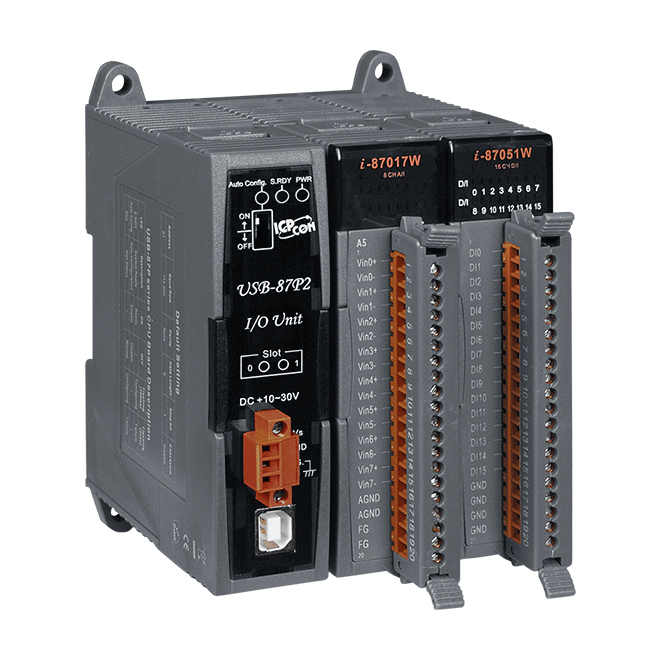

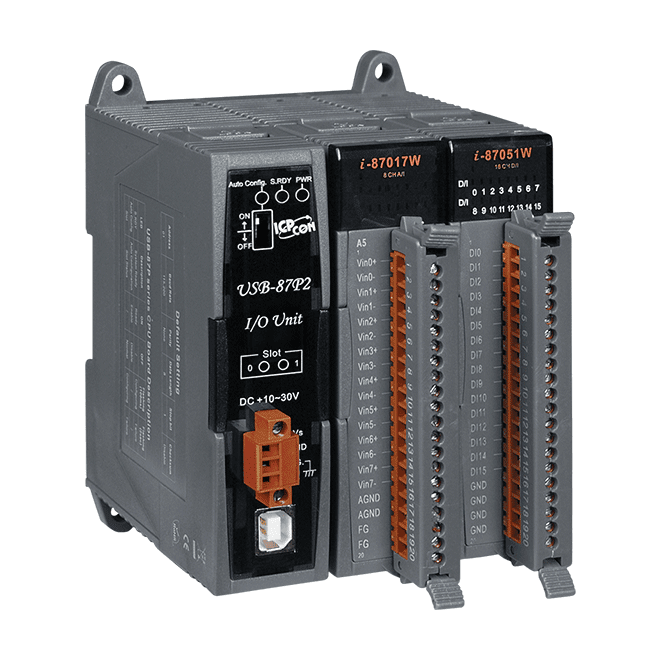

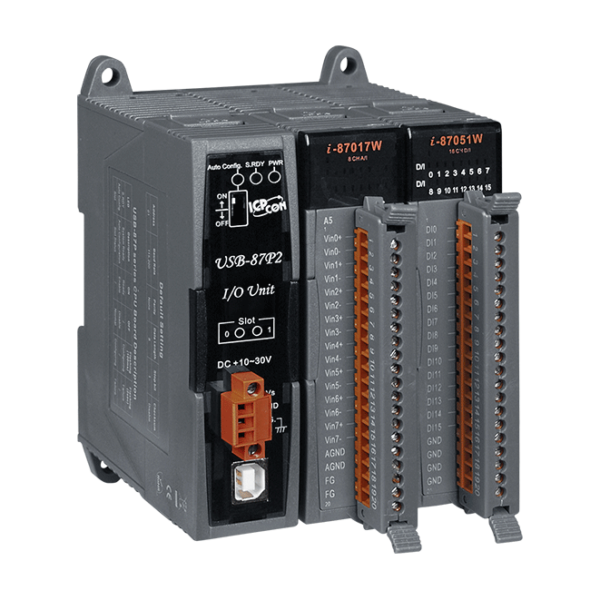

USB-87P2 2-slot USB I/O Expansion Unit with Intelligent CPU Module
£218.00
Key Features
- One USB Port
- Hot Swap Allowed
- Auto Configuration
- LED Indicators for Fault Detection
- DCON Protocol (ASCII-based protocol)
- 2 Slots for I-87K Modules
- Operating Temperature: -25 ~ +75 °C
Description
The ICP DAS USB-87P2 is a 2-slots USB I/O expansion unit. It is designed for use in harsh and noisy environment, hence the hardware has been designed with a wide power input range of 10 ~ 30 VDC, isolated power input and wide temperature of -25 ~ +75 °C.
To simplify installation and maintenance of I/O modules, it provides many useful features such as hot swap capability, auto configuration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.
There are over 30 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, Labview driver, InduSoft driver, Linux driver, OPC server. The I-87K series I/O modules plugged in the USB-87Pn can be easily integrated into variant software system.
