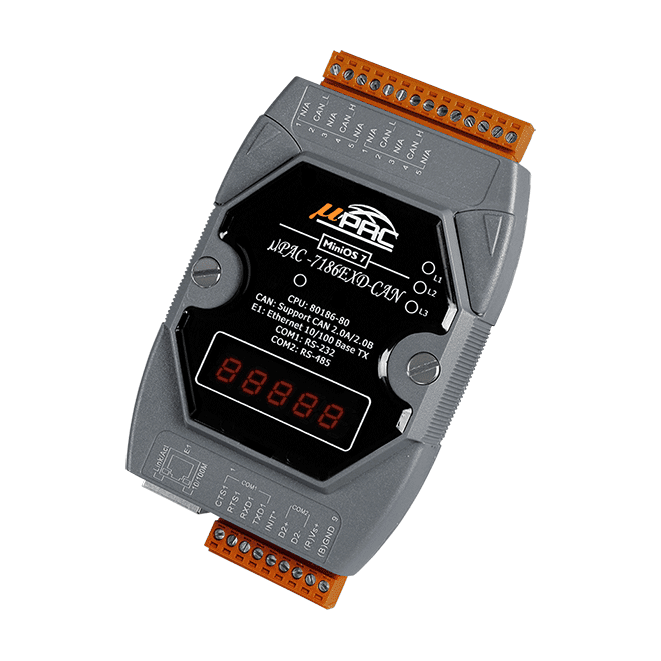

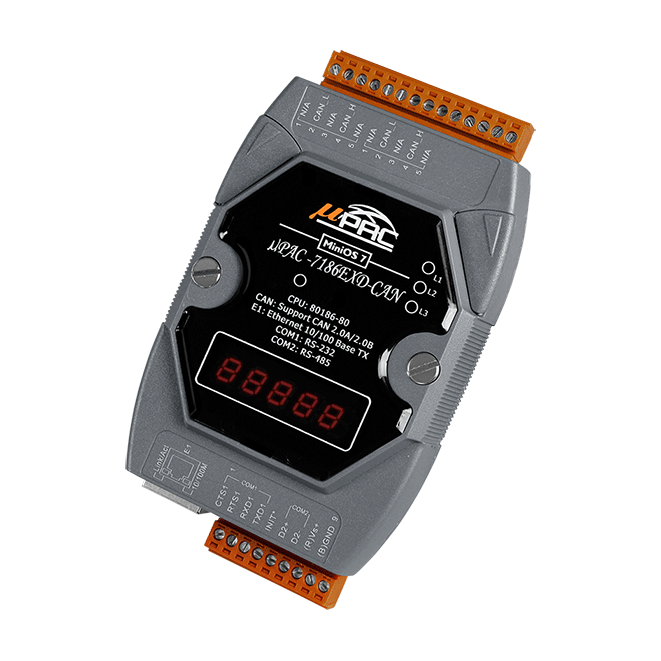

uPAC-7186EXD-CAN-G CAN Programmable Controller with Series Port, Ethernet port, 7-segment Display & Programable LEDs

£289.00

Add to quote

Key Features

  • Compatible with CAN specification 2.0 parts A and B
  • Programmable transfer rate up to 1 Mbps
  • Jumper select 120Ω terminal resistor for CAN channel
  • Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
  • 10/100BASE-T Ethernet Controller
  • Upgradable OS image
  • Remote Configuration
  • 64-bit hardware unique serial number inside
  • COM driver support interrupt & 1KB QUEUE Input & Output buffer
  • COM port: COM1, COM2
  • Built-in RTC, NVRAM, EEPROM
  • Built-in self-tuner ASIC controller on RS-485 port
  • Built-in ICP DAS’s MiniOS7
  • Program download port: COM1 or Ethernet Port (Available Soon)
CE UKCA FCC RoHS WEEE

Description

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control.

The uPAC-7186EXD-CAN PACs (programmable Automation controller) are powered by 80186-80 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. All of them provide several communication interfaces to adapt to various applications, such as CAN port, RS-232 port, RS-485 port and Ethernet interface. Uses can program their application program flexibly with C/C++ language because of the built-in MiniOS7 operation system.

Besides, the uPAC-7186EXD-CAN series PACs have different I/O types for users to match their requirement. For uPAC-7186EXD-CAN , there is no I/O channel. It is useful for transfer the command from differential communication interface. Therefore, the uPAC-7186EXD-CAN series PACs are economic and convenient solution for diversification CAN application.

Applications

  • CAN bus communication application
  • Industry automation
  • Auto detecting CANopen slave devices
  • IO monitor
  • High speed data acquisition system
  • Process monitor and control
  • Factory automation
  • Laboratory automation
  • Communication switching
