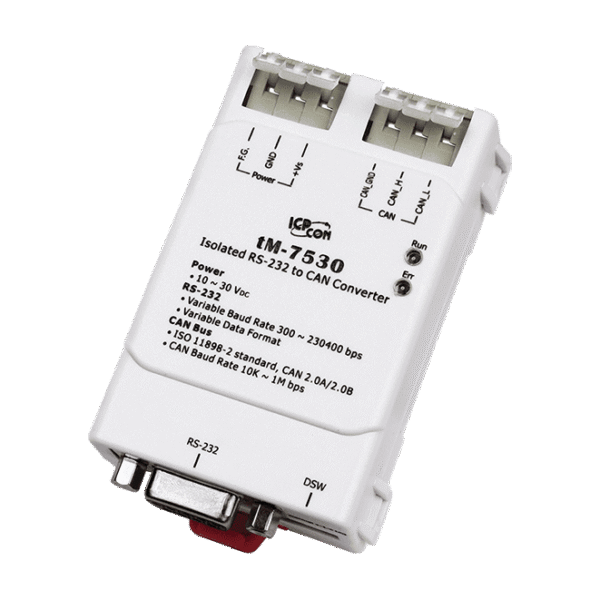

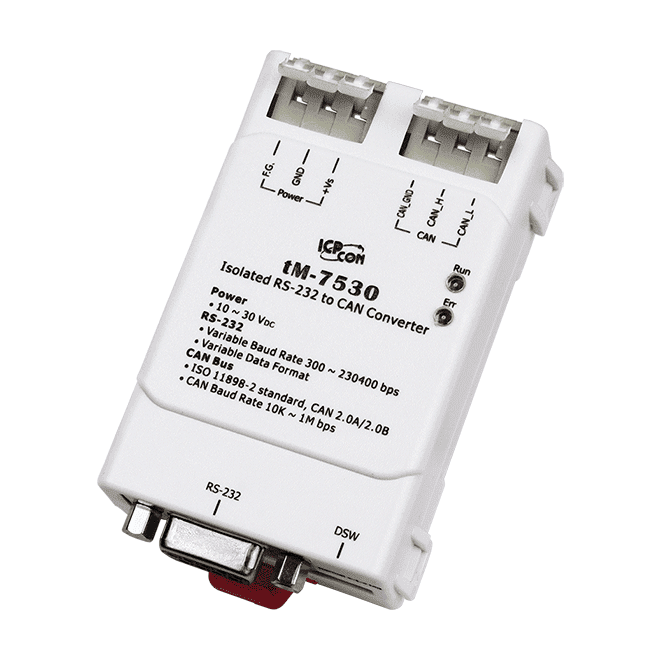

tM-7530 Intelligent tiny RS-232/CAN converter

tM-7530 Intelligent tiny RS-232/CAN converter

£111.50

Add to quote

Key Features

  • Compatible with CAN specification 2.0A and 2.0B
  • Fully compatible with ISO 11898-2 standard
  • Support various CAN baud rate from 10K bps to 1M bps
  • Support user-defined CAN baud rate
  • Support various RS-232 baud rate from 110 bps to 230400 bps
  • External option 120 Ω terminal resistor
  • Software configurable CAN and RS-232 communication parameters
  • Power, data flow and error indicator for CAN and RS-232
  • Watchdog inside
  • Support pair connection mode
  • Software buffer on CAN bus side and RS-232 side
  • Support user-defined end of characters on pair connection mode
  • Support listen only mode
  • Support time stamp response on RS-232 side
CE UKCA FCC RoHS WEEE

Description

CAN (Controller Area Network) is a serial bus system especially suited to structure intelligent industry devices networks and build smart automatic control systems. The following figure shows the application architecture for tM-7530 module. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the tM-7530 Converter.

These UART/CAN converters can help users to implement the communication between RS-232 and CAN network. In order to cater for costing requirement, we provide a new solution of RS-232/CAN converter-tM-7530. The tM-7530 is a tiny RS-232/CAN to fit narrower environment as a result of its small size. It has isolation on power side and on CAN bus side and its performance is faster than other RS-232/CAN module.

The function of tM-7530 can full compatibly with I-7530 and I-7530T. Besides, it provides new function such as listen only. User can use this function to listen CAN bus messages and error detection. According to above features, tM-7530 is an economical and practical RS-232/CAN converter solution.

In pair connection mode, tM-7530 can be used to connect PC with other RS-232 devices at the same time. The application architecture may be as follows.

Applications

  • Control System
  • Building Automation
  • Factory Automation
  • Distributed data acquisition

tM-7530_en
