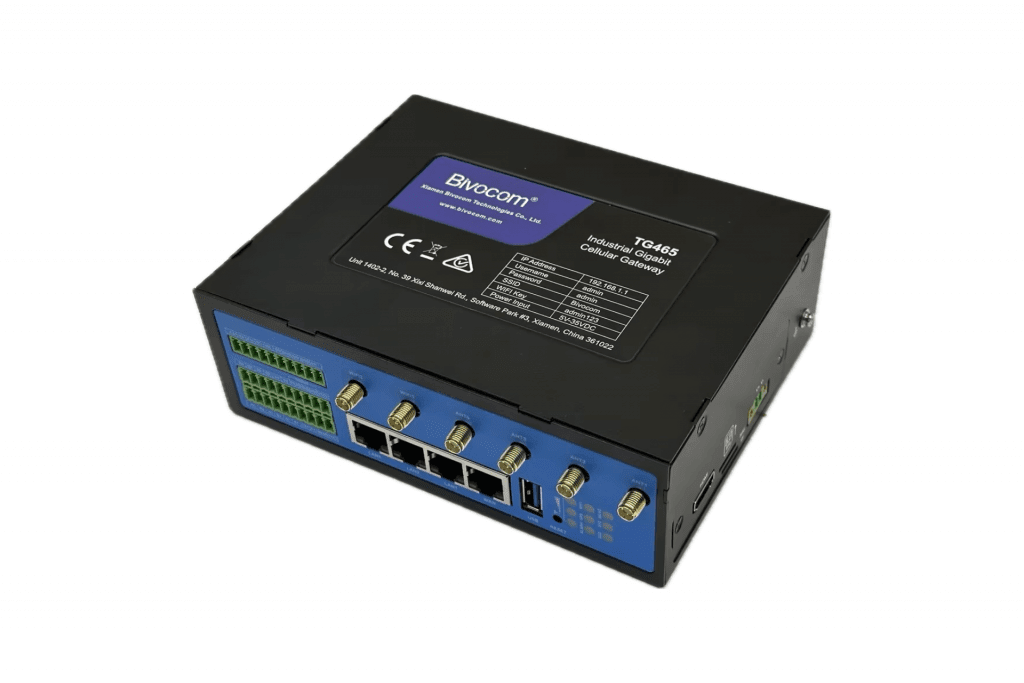

TG465-LF 4G LTE Edge Gateway with 4-GbE, 1-RS232, 6-RS485, 3-DI, 2-Relay output, 1-USB & 1-TF

£499.00

Add to quote

Key Features

  • Quad-core 64-bit ARM Cortex-A55 up to 2GHz
  • NPU up to 1 TOPS, ARM G52 2EE GPU
  • Up to 2GB RAM (DDR4, 8GB Option) & 16GB Flash(eMMC, 128GB Option), NVMe SSD(Option, up to 2TB)
  • Openwrt Linux OS with Python/C/C++ programmable, or Unbuntu Linux OS, docker container, flexible for secondary development
  • 5G NR or 4G LTE
  • 4-RJ45(GbE),1-RS232, 6-RS485, 3-DI, 2-Relay, 1-USB3.0, 1-TF, WIFI6 (Option), HDMI (Option), &Super capacitor (Option)
  • MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA, & IEC101/104

Description

The Bivocom TG465 is a powerful and intelligent next-generation IoT Gateway built-in with ARM CPU, GPU and NPU. It’s designed for mission-critical IoT applications that demand advanced connectivity, edge computing, enhanced security, AI and machine learning, and improved energy efficiency. The TG465 IoT gateway is designed industrial applications such as industry 4.0, telecom sites, smart cities, smart grid, renewable energy, and transportation.

The TG465 offers an embedded environment with OpenWRT-based Linux OS, enabling IoT developers to program and install their applications using Python, and C/C++ directly on the hardware via SDK. Additionally, the TG465 provides a flexible secondary development option through the Ubuntu programming environment.

The Bivocom TG465 has a wide range of interfaces and I/Os, allowing seamless connectivity with various equipment, controllers, and sensors. It facilitates data transfer to the cloud server via a 5G/4G LTE cellular network. It also supports crucial industrial protocols like MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA, IEC101/104, and VPN, ensuring efficient and secure IoT data connectivity between field devices and the cloud server.

Application

DS_TG465_V2.2.1
