R-9084 8-ch Isolated Pulse Input

Description

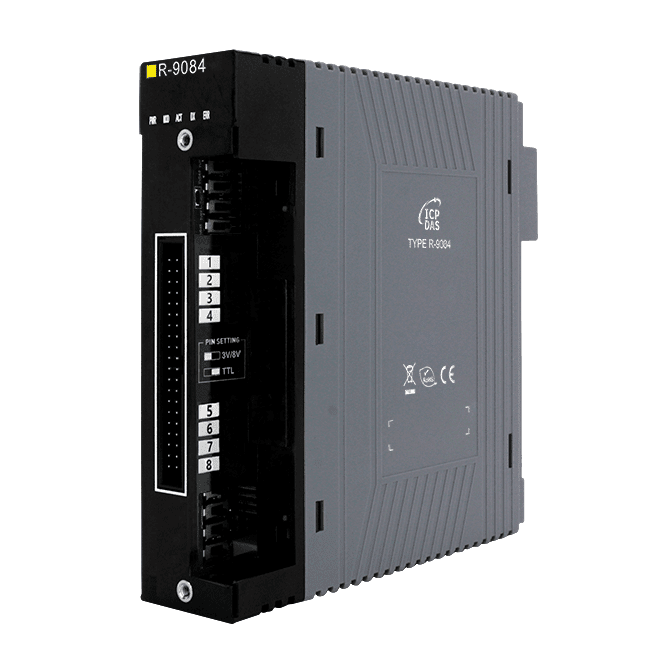

The ICP DAS R-9084 is an 8-channel, 32-bit high-speed counter and frequency measurement module with the following features:

• Input Signal Type：3VDC/8VDC Schmitt or TTL voltage level trig.
• Low-pass Filter: Solves the problem of bouncing of the pulse input signal and ensures the stability of the input signal.
• Measurement Frequency Range：1Hz ~ 10 KHz
• Channel Isolation: Complete isolation of electrical signals between channels ensures that channels do not interfere with each other.
• LED Indicator: Displays channel abnormal status and module operation status.

The R-9084 module must be used with a terminal board to connect external signals and supports a terminal board disconnection detection mechanism to ensure wiring stability. It provides 3000 VDC isolation between the power supply and the backplane bus, making it better able to prevent noise interference in industrial environments without affecting the RIO-98×0 system. Additionally, the module supports a redundancy design, allowing the system to continue stable operation even if a single I/O module fails, further enhancing system reliability.
