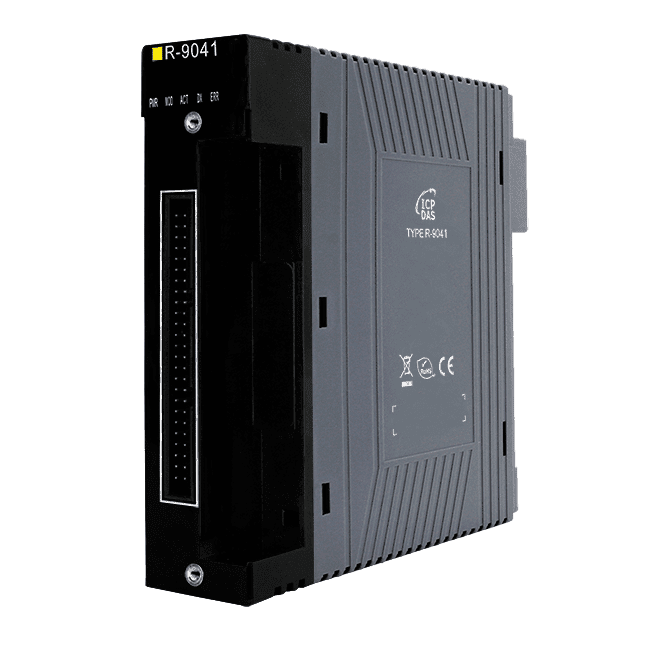

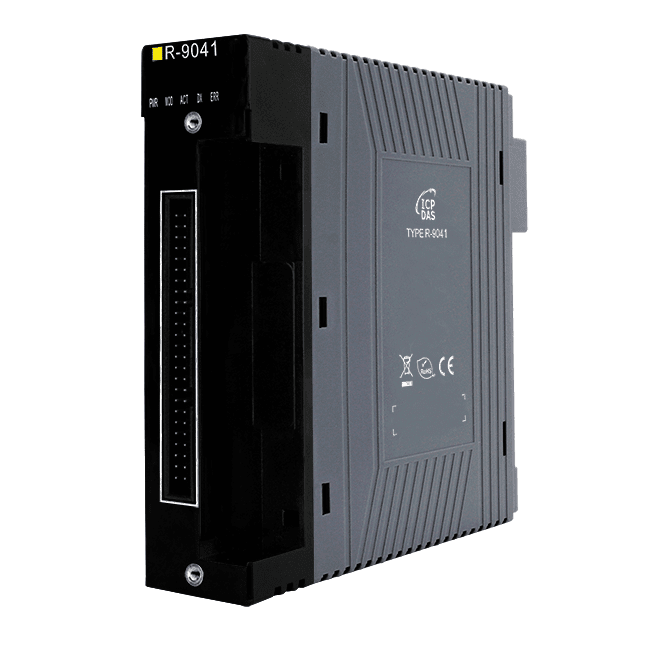

R-9041 32-ch Isolated Digital Output

Description

The ICP DAS R-9041 is a 32-channel NPN digital output module (sink mode) with the following features:

• Channel Load Driving Capability: 100mA
• Power-up Value & Safety Value Setting: Ensure that the module can output a predefined state during startup or abnormal conditions.
• Channel Self-detection: Detects abnormalities in the channel components of the module and provides fault alarms.
• LED Indicator: Indicates channel ON/OFF status and module operation status.

The R-9041 module must be used with a terminal board to connect external signals and supports a terminal board disconnection detection mechanism to ensure wiring stability. It provides 3000 VDC isolation between the power supply and the backplane bus, making it better able to prevent noise interference in industrial environments without affecting the RIO-98×0 system. Additionally, the module supports a redundancy design, allowing the system to continue stable operation even if a single I/O module fails, further enhancing system reliability.
