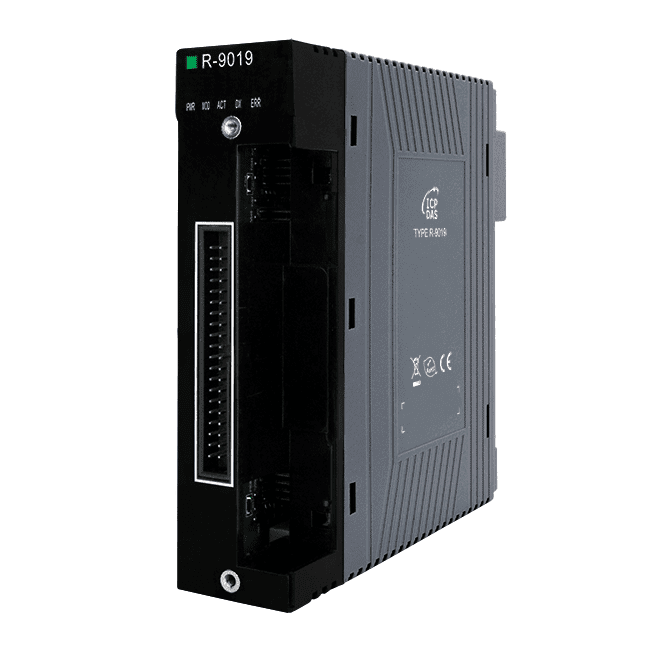

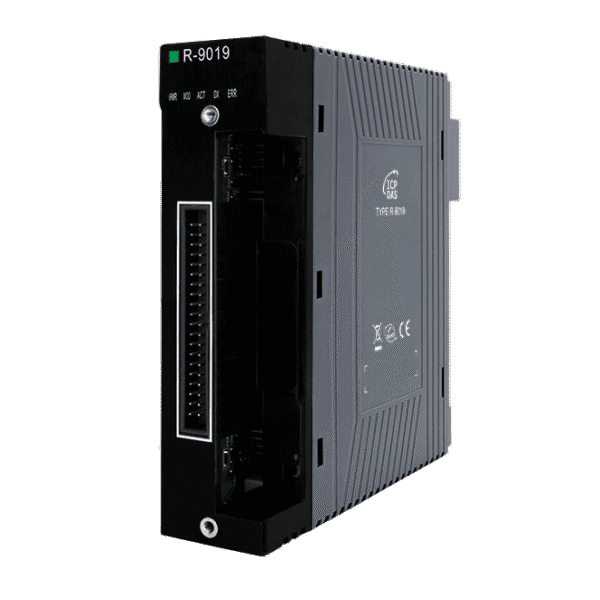

R-9019 16-ch Thermocouple Input

Description

The ICP DAS R-9019 is a highly accurate 16-channel, 16-bit thermocouple temperature measurement module with the following features:

• Supports Multiple Sensors: J, K, T, E, R, S, B, N, C thermocouple temperature sensors.
• High Accuracy: Tolerance ±0.05% FSR to ensure accurate temperature measurement.
• High/Low Alarm: Abnormal channel temperature is alerted immediately to ensure the safety of system operation.
• Temperature Measurement Range: Different measurement ranges can be set according to application requirements.
• Channel Disconnection Detection: Ensures safe and stable wiring of the channel.
• LED Indicator: Displays channel abnormal status and module operation status.

The R-9019 module must be used with a terminal board to connect external signals and supports a terminal board disconnection detection mechanism to ensure wiring stability. It provides 3000 VDC isolation between the power supply and the backplane bus, making it better able to prevent noise interference in industrial environments without affecting the RIO-98×0 system. Additionally, the module supports a redundancy design, allowing the system to continue stable operation even if a single I/O module fails, further enhancing system reliability.
