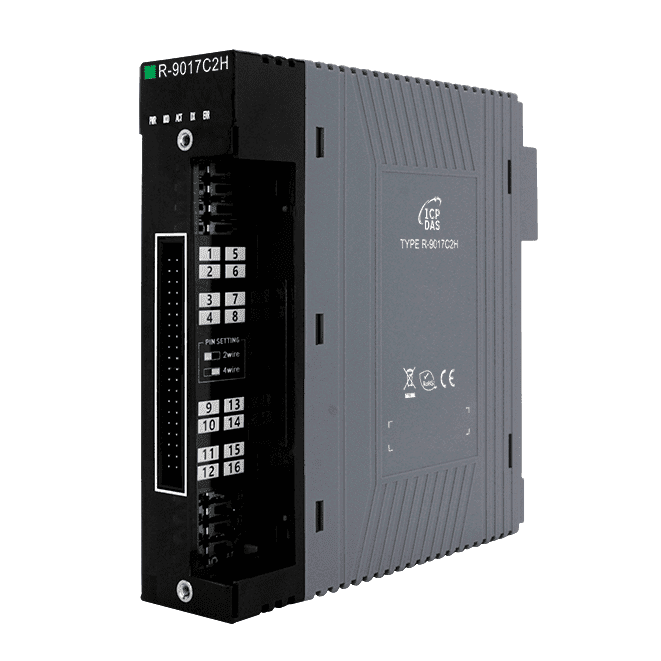

R-9017C2H 16-ch, Isolated 4~20mA Input, HART master

Description

The ICP DAS R-9017C2H is an 16-channel, 16-bit channel-isolated analog current input module with the following features:

• Current Input Range: Supports 4 ~ 20mA current input and ±25% over-range measurement.。
• High Accuracy: Tolerance ±0.05% FSR to ensure accurate current readings。
• Sampling Rate: 10 Hz
• High/Low Alarm: Abnormal channel current is alerted immediately to ensure the safety of system operation.
• Channel Disconnection Detection: Ensures safe and stable wiring of channels.
• Channel Loop Power: Channels can provide 28VDC to simplify equipment wiring.
• HART Communications: Built-in HART master communication for accessing HART device information.
• LED Indicator: Displays channel abnormal status and module operation status.

The R-9017C2H module must be used with a terminal board to connect external signals and supports a terminal board disconnection detection mechanism to ensure wiring stability. It provides 3000 VDC isolation between the power supply and the backplane bus, making it better able to prevent noise interference in industrial environments without affecting the RIO-98×0 system. Additionally, the module supports a redundancy design, allowing the system to continue stable operation even if a single I/O module fails, further enhancing system reliability.
