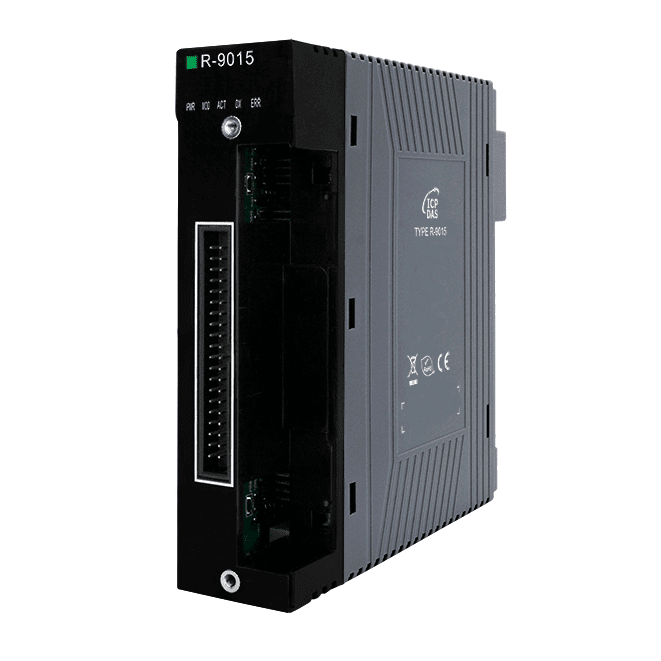

R-9015 12-ch, 16-bit RTD Input Module

Description

The ICP DAS R-9015 is a 12-channel, 16-bit RTD temperature measurement module with the following features:

• Supports Multiple RTD Sensors: PT-100, JPT-100 and PT-1000 temperature sensors.
• High Accuracy: Tolerance ±0.05% FSR to ensure accurate temperature measurement.
• High/low Alarm: Abnormal channel temperature is alerted immediately to ensure the safety of system operation.
• Measurement Range & Temperature Offset: Different measurement ranges and temperature offsets can be set according to application requirements to enhance the accuracy and reliability of the measurement results.
• Channel Disconnection Detection: Ensures safe and stable wiring of the channel.
• LED Indicator: Displays channel abnormal status and module operation status.

The R-9015 module must be used with a terminal board to connect external signals and supports a terminal board disconnection detection mechanism to ensure wiring stability. It provides 3000 VDC isolation between the power supply and the backplane bus, making it better able to prevent noise interference in industrial environments without affecting the RIO-98×0 system. Additionally, the module supports a redundancy design, allowing the system to continue stable operation even if a single I/O module fails, further enhancing system reliability.
