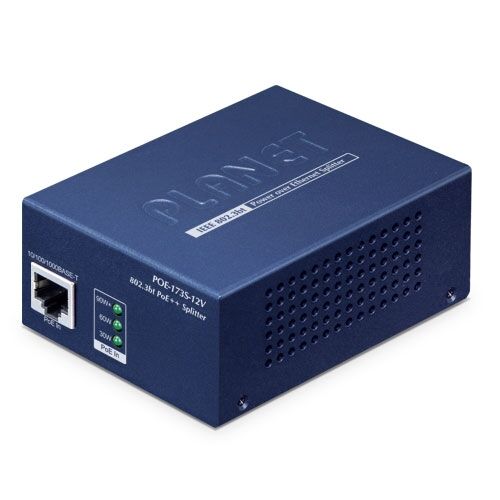

POE-173S-12V Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter

£169.00

Add to quote

Key Features

  • Two 10/100/1000BASE-T Gigabit RJ45 ports
    • 1-port Data + Power input
    • 1-port Data output
  • 1-port DC plug-in
  • Complies with 802.3bt Power over Ethernet plus plus PD
  • Backward compatible with 802.3at PoE+ with up to 30-watt power output
  • Splits the PoE power over RJ45 Ethernet cable into DC 12V output
  • Distance up to 100 meters
  • PoE usage level LED indicators
  • Desktop, wall-mount or DIN-rail (optional) design
  • Complies with FCC, CE class B, CB and UL certifications
  • Metal case
CE FCC RoHS WEEE

Description

PLANET POE-173S-12V Gigabit 802.3bt Power over Ethernet splitter, which delivers the Ethernet digital data and PoE power from an 802.3bt type-4 PoE++ PSE (power source equipment) over an UTP cable, comes with a DC 12V output, enabling to deliver a maximum of 60-watt power output to a non-PoE powered Ethernet device. It supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters.

The POE-173S-12V, when working with PLANET 802.3bt type-4 PoE++ switches or injectors, offers more network applications to client devices including PTZ speed dome camera, Thin client, AIO (All-in-One) touch PC, Remote digital signage display and non-PoE network devices that need higher power to work normally.

The POE-173S-12V comes with a compact-sized metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the POE-173S-12V is able to operate reliably and stably without affecting its performance. The deployment of non-PoE equipment with constant power feeding can be easily and quickly done.
