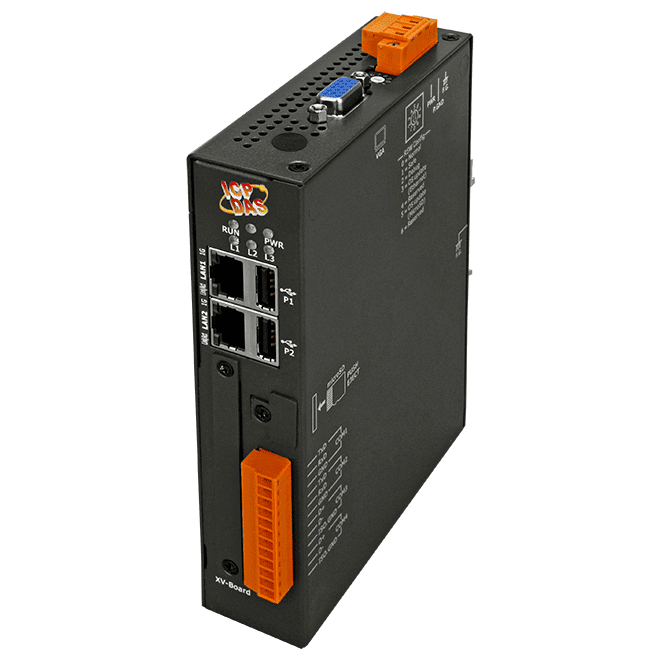

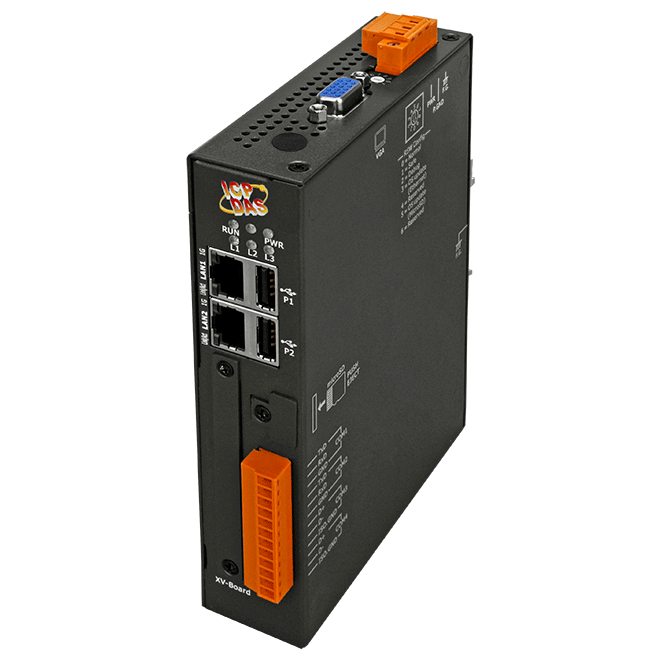

PMC-2241M-iWSN IIoT Power Meter Concentrator

£799.00

Key Features

  • No extra software tool is required, using browsers to perform system operations.
  • Up to 3 iWSN-200 iWSN data concentrators be connected, supporting up to 93 ICP DAS iWSN wireless modules.
  • Supported iWSN wireless module types:
    • Power meter : iWSN-9603
    • Signal sensing module : iWSN-110X, iWSN-121A, iWSN-1310
  • Display real-time or historical power data; Provide power data statistics report.
  • Power data logger and data files send back function supported.
  • Built-in IF-THEN-ELSE logic engine for power demand management.
  • Support Line and Email message notification.
  • Support Modbus TCP/RTU, SNMP, MQTT, FTP and CGI protocols.
  • Support connection with IoT Cloud Platform (Microsoft Azure,IBM Bluemix) and IoTstar Cloud Management Software.

CE UKCA FCC RoHS WEEE

Description

The PMC-2241M is the new generation of Power Meter Concentrator for meeting the trend of energy saving and carbon reduction in the Industry 4.0 age. It provides flexible integration with the ICP DAS power meters via RS-485 or Ethernet interface, and features various functions such as: measure the power consumption of the devices, energy usage analysiPMC-224xM-iWSN serves as an iWSN Wireless Power Meter Concentrator to meet the needs of energy management in the Industry 4.0 era.

It allows flexible integration with ICP DAS iWSN wireless power meters via iWSN-200 data concentrator, and offers a range of functions including device power consumption measurement, energy usage analysis, power data logging, power demand management and alarm notification. PMC-224xMiWSN offers a user-friendly and intuitive web site interface that enables users to easily implement an Energy monitoring system with just a few clicks; no programming is required.

By working with iWSN power meters, incorporating IF-THEN-ELSE logic rule execution capabilities, and providing LINE/Email alarm message notification functions, PMC-224xM-iWSN delivers advanced power demand management functions. In addition, it supports a wide range of network protocols including Modbus TCP/RTU, SNMP, FTP and MQTT, enabling seamlessly connection with back-end SCADA/IT/IoT systems. The PMC-224xM-iWSN can also connect with ICP DAS IoTstar IoT cloud management software, further enhancing its capability to integrate into diverse IT/IoT environments.

PMC-2241M-iWSN

PMC-224xM-iWSN_Datasheet_en
