PISO-PS400U Universal PCI Bus, High-speed 4-axis Motion Control Card with FRnet Master

PISO-PS400U Universal PCI Bus, High-speed 4-axis Motion Control Card with FRnet Master

£799.00

Add to quote

Key Features

  • Independent 4-axis motion control
  • Support for hand wheel and jog functions
  • 2/3-axis linear / 2-axis circular interpolation function
  • Continuous interpolation function
  • Programmable T/S-curve acceleration and deceleration
  • A maximum pulse output rate of 4 MHz for each axis
  • Pulse output types: CW/CCW or PULSE/DIR
  • 32-bit encoder counter for each axis
  • Encoder pulse input types: A/B phase or Up/Down
  • Programmable automatic homing for each axis
  • Programmable software limits
  • A wide range of synchronous actions (event-triggered actions)
  • Expandable Remote I/O: 128 DI & 128 DO via a two-wire FRnet interface
CE UKCA FCC WEEE

Description

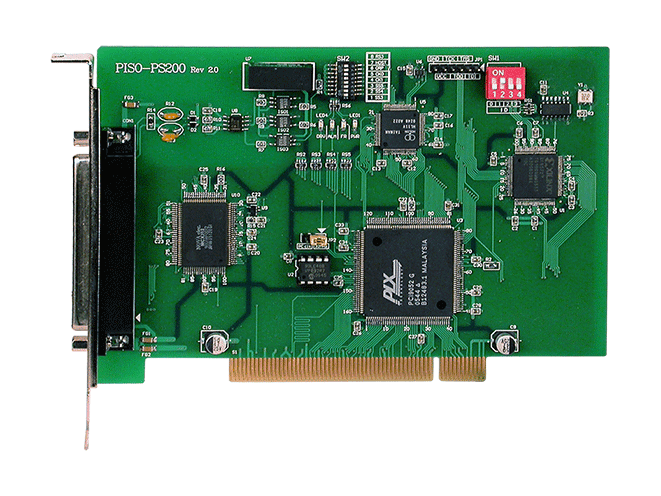

The ICP DAS PISO-PS400(U) are 4-axis stepping/pulse-type servo motor control card that can be used on any IPC with PCI bus and is suitable for general-purpose motion control applications. These cards are equipped with one FRnet Master which allows the fast remote I/O of the IPC to be expanded easily. The two-wired FRnet interface allows a maximum 128 DI and 128 DO channels, which are automatically scanned within a period of 2.88 ms.

In addition to its wide speed range, this intelligent motion controller also has a variety of motion control functions built in, such as 2/3-axis linear interpolation, 2-axis circular interpolation, T/S-curve acceleration/deceleration, numerous synchronous actions, automatic homing, and others. A major advantage is that the majority of the PS400 series motion control functions are performed by the high-performance motion ASIC with little load on the processor. The motion status, FRnet I/O, and the other I/O cards on the IPC can still be monitored while driving the motors.

As the low CPU loading requirements of the PS400 series is minimal, one or more motion cards can be used with a single IPC. ICP DAS also provides a variety of functions and examples that can be used to reduce the need for additional programming, making it a highly cost-effective solution for motion control application developers.

PISO-PS400_features

Applications

  • Component Inspection
  • Manufacturing Quality Control
  • Food and Beverage Inspection
  • Microscopy and Medical Imaging
  • Biometrics Applications
  • X-Y-Z Table
  • Fix-pitch Stamping Machinery
  • Transfer Machinery
  • Spinner
  • Load/Unload

PC-based-solution                                   Application System Structure



Lead time: 5-7 working days from receipt of order.

PISO-PS400(U)_PCIe-PS400_en
