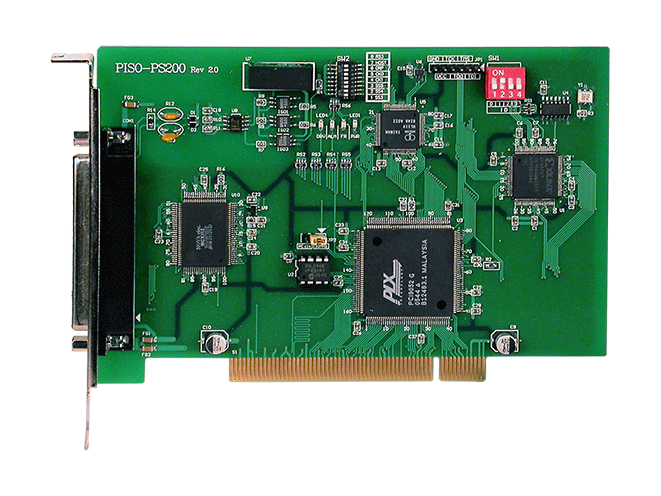

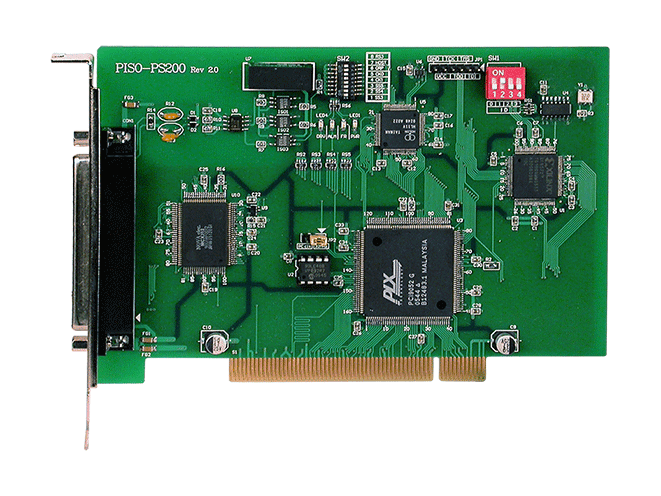

PISO-PS200 PCI Bus, High-speed 2-axis Motion Control Card with FRnet Master

£595.00

Key Features

  • Independent 2-axis motion control
  • Support for hand wheel and jog functions
  • 2-axis linear / 2-axis circular interpolation function
  • Continuous interpolation function
  • Programmable T/S-curve acceleration and deceleration
  • A maximum of 4 MHz pulse output rate for each axis
  • Pulse output types: CW/CCW or PULSE/DIR
  • 32-bit encoder counter for each axis
  • Encoder pulse input types: A/B phase or Up/Down
  • Programmable automatic homing for each axis
  • Programmable software limits
  • Expandable Remote I/O: 128 DI & 128 DO via a two-wire FRnet interface
CE UKCA FCC WEEE

Description

The ICP DAS PISO-PS200 is a 2-axis stepping/pulse-type servo motor control card that can be used on any IPC with a 5 V PCI bus, and is suitable for general-purpose motion control applications. This card is equipped with one FRnet Master which allows the fast remote I/O of the IPC to be expanded easily.

The two-wired FRnet interface allows a maximum 128 DI and 128 DO channels, which are automatically scanned within a period of 2.88 ms. In addition to its wide speed range, this intelligent motion controller also has a variety of motion control functions built in, such as 2-axis linear interpolation, 2-axis circular interpolation, T/S-curve acceleration/deceleration, numerous synchronous actions, automatic homing, and others.

A major advantage is that the majority of the PISO-PS200 motion control functions are performed by the high-performance motion ASIC with little load on the processor. The motion status, FRnet I/O, and the other I/O cards on the IPC can still be monitored while driving the motors.
As the low CPU loading requirements of the PISO-PS200 is minimal, one or more motion cards can be used with a single IPC. ICP DAS also provides a variety of functions and examples that can be used to reduce the need for additional programming, making it a highly cost-effective solution for motion control application developers.

PISO-PS200_Features

Applications

  • Semiconductor Manufacturing
  • Component Inspection
  • Manufacturing Quality Control
  • Food and Beverage Inspection
  • Microscopy and Medical Imaging
  • Biometrics Applications
  • X-Y-Z Table
  • Fix-pitch Stamping Machinery
  • Transfer Machinery
  • Spinner
  • Load/Unload

PC-based-solution                                   Application System Structure
