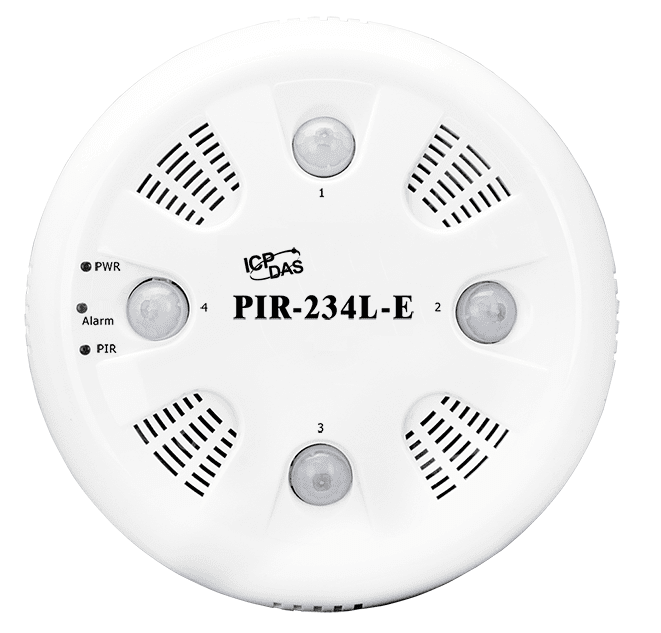

PIR-234L-E PIR Motion Sensor, Temperature and Humidity Sensor Module (High Sensitivity/Height 4 m/Diameter 14 m) (Ethernet)


Key Features

  • Adjustable Time-Delay
  • 4 PIR Motion Sensors for increased sensitivity and range
  • Internal Photosensor for Smart Switch Control
  • LED Indicator for PIR/Temperature Sensor
  • Temperature Sensor for Measuring Room Temperature
  • Suitable as either Temperature or Fire Alarm
  • Relay Output Can be Used to Control Light Via the PIR/Temperature Sensor
  • Provide High Power Relay Output to turn ON/OFF the Lighting, Support Lighting Module (Max.):
    • Incandescent Lamp: 40 W/ 220 VAC * 8 Sets
    • LED(Electronic ballast): 40 W/ 220 VAC * 10 Set
  • Wide range of Communication Interfaces and Protocols
  • Ceiling or Surface-Mount Design


The ICP DAS PIR-234L-E series modules have 4 PIR Motion Sensors to increase sensitivity and the ability to detect infrared waves generated by the human body within a diameter of approximately 9 and 14 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or it can be configured to activate a fire alarm. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/Wi-Fi, provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems.

The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that it is easy to match with interior decoration.


  • Common lighting in staircases
  • Garden lights
  • Lighting for changing rooms in shops
  • Lighting for Conference Room, Classroom, Pantry Room
  • Corridor lighting, and many more situations
