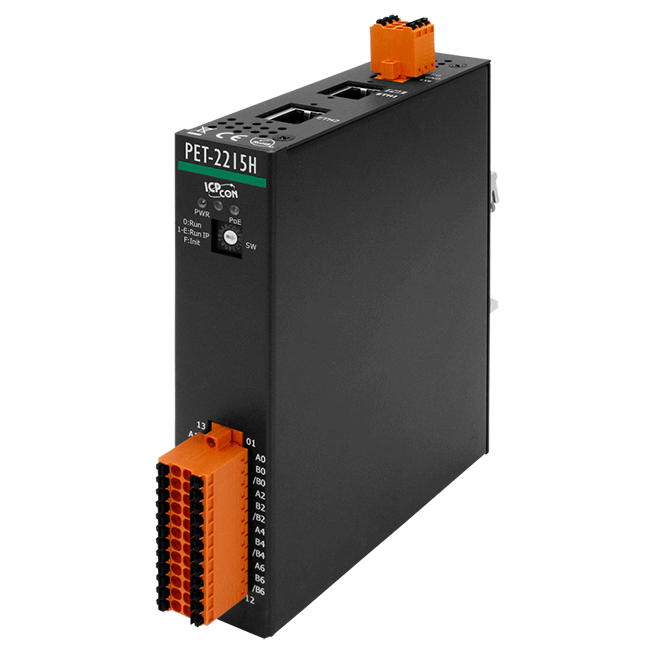

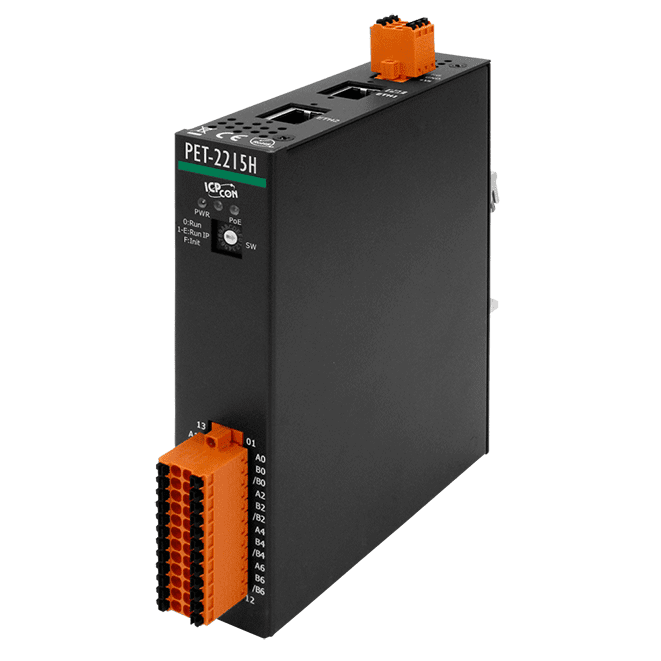

PET-2215H PoE I/O Module with 8-ch High Speed RTD Input

PET-2215H PoE I/O Module with 8-ch High Speed RTD Input

£469.00

Add to quote

Key Features

  • Web Server for Configuration
  • Power over Ethernet function
  • Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-chain Wiring
  • 3-wire RTD Lead Resistance Compensation
  • Supports Firmware Update via Ethernet
  • 90Hz High-speed Sampling Rate for each Channel
  • Open Wire Detection
  • Built-in I/O
    • 8-ch RTD Input
  • Individual Channel Configuration
CE UKCA RoHS WEEE

Description

The ICP DAS PET-2215H is an 8-channel RTD input module that provides 90Hz high-speed measurement and open wire detection for each channel with PoE function. Each channel can be connected to different types of RTD sensors and supports 3-wire RTD lead wire compensation, ensuring accurate measurements regardless of wire length.

The PET-2215H module includes a built-in 2-port Ethernet switch, facilitating a daisy-chain topology. This feature offers flexibility in device configuration, simplifies installation, and reduces infrastructure costs. Additionally, it also provides EMS (EFT/ESD/Surge) protection and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.

Applications

• Factory Automation
• Machine Automation
• Building Automation
• Remote Diagnosis & Maintenance
• Testing Equipment

(P)ET-2215H_(P)ET-2215H-16_en
