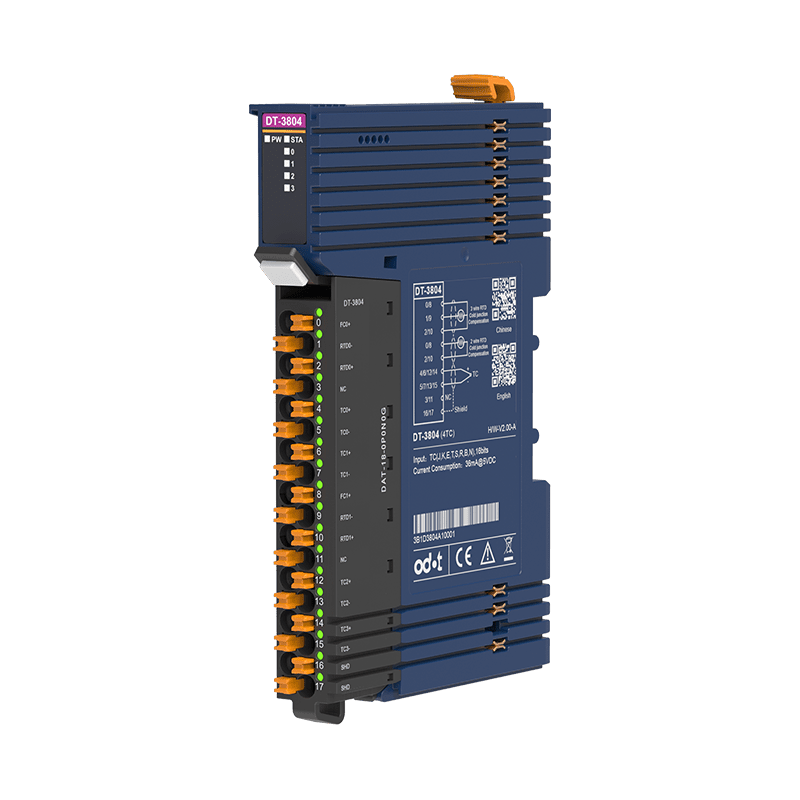

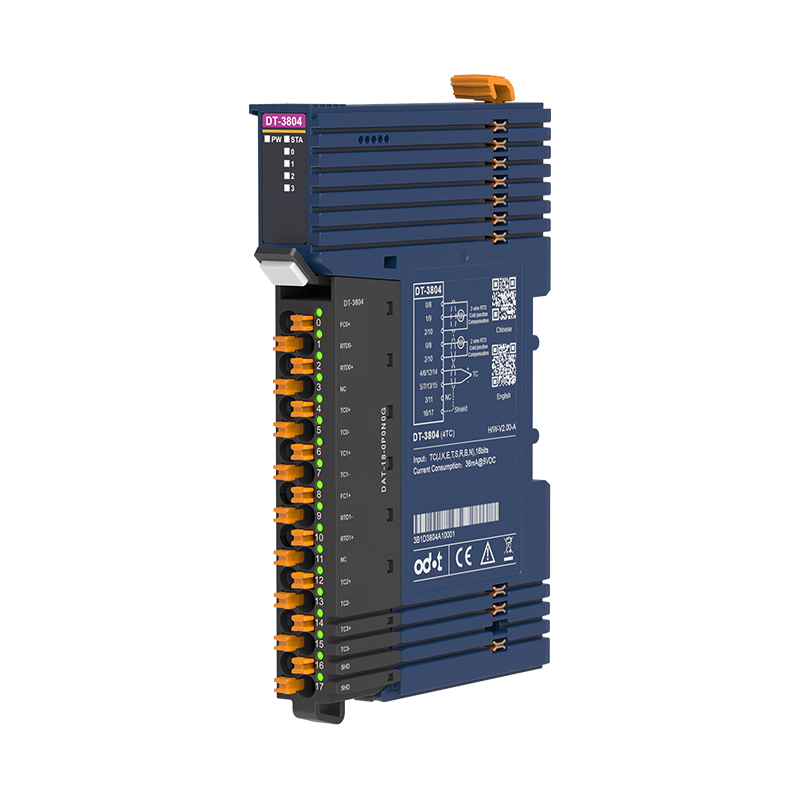

ODOT DT-3804 4-channels Thermocouple Input Module TC-J/K/E/T/S/R/B/N type

ODOT DT-3804 4-channels Thermocouple Input Module TC-J/K/E/T/S/R/B/N type

£149.00

Add to quote

Features

  • Channel Number: 4 channels thermocouple input
  • LED Indicator: 4 LED channel State indicators
  • Input range: TC-J/K/E/T/S/R/B/N Type
  • Resolution: 16 Bit
  • Conversation Time: 500ms/4 channels (filter level is 0)
  • Linearity Error: ≤±0.01%
  • Operational Temperature: -35~60℃

Description

The ODOT DT-3804 is a 4-channel thermocouple input module that can be integrated with the ODOT Network Adapters measure TC-J/K/E/T/S/R/B/N type  signals. The module support TVS overvoltage protection and internal bus of the module and field input adopts capacitive isolation.  The module’s cold end compensation mode supports external reference junction or fixed reference temperature compensation.

The ODOT DT-3804 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.

ODOT D-Series
