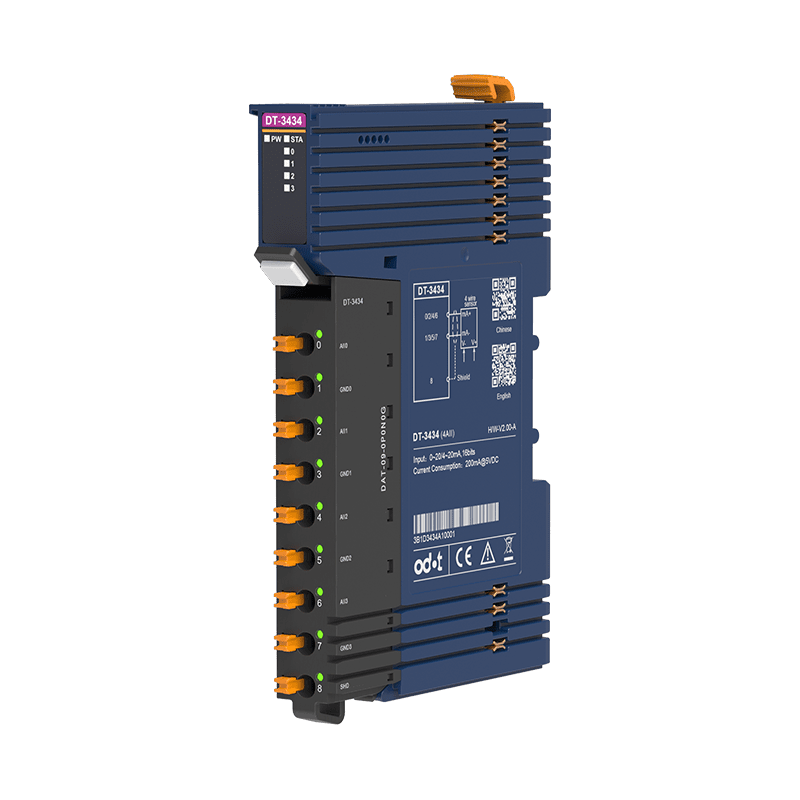

ODOT DT-3434 4-channels Current Input Module (0~20mA or 4~20mA) with 16 bits Resolution

ODOT DT-3434 4-channels Current Input Module (0~20mA or 4~20mA) with 16 bits Resolution

£189.00

Add to quote

Features

  • Channel Number: 4 channels
  • LED Indicator: 4 LED channel State indicators
  • Input range: Maximum: 0 ~ 23.5 mA
  • Resolution: 16 Bit
  • Acquisition precision: ±0.3% full range @25℃; ±0.5% full range @-20~70℃
  • Sampling rate: 20 ms per channel
  • Data format: 16-bit signed integer
  • Operational Temperature: -35~60℃

Description

The ODOT DT-3434 is a 16-bit 4-channel analog input module that can be integrated with the ODOT Network Adapters measure 0-20mA or 4-20mA process signals. The module supports 2-wire (non-loop output, external power supply required) or 4-wire current sensor input.

The ODOT DT-3234 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
