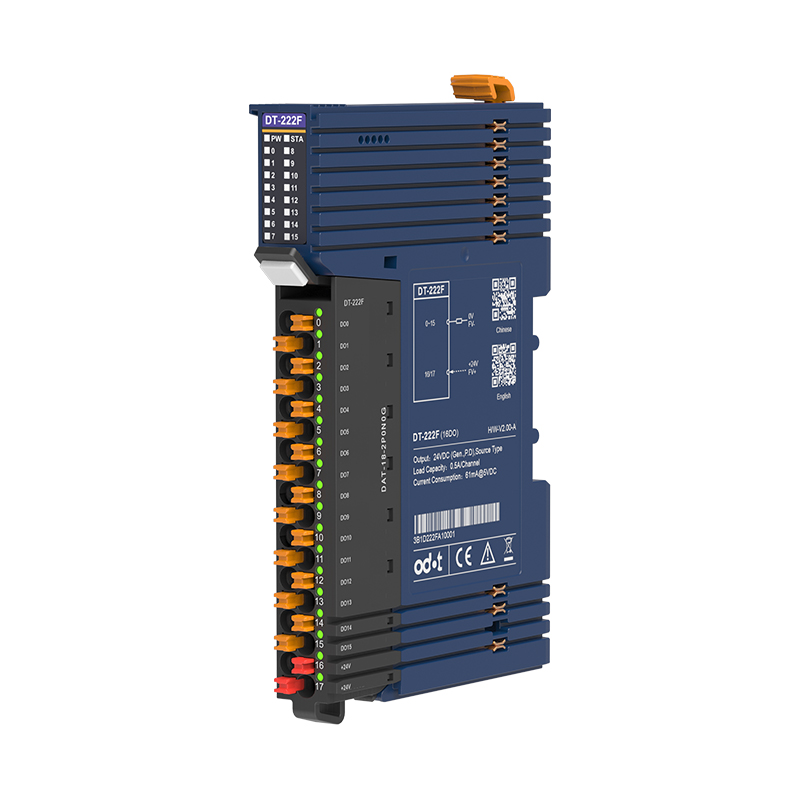

ODOT DT-222F 16-channels Digital Output (24VDC) Source type

ODOT DT-222F 16-channels Digital Output (24VDC) Source type

£60.00

Add to quote

Features

  • Channel Number：16 channel digital output/24VDC/ Source type
  • LED Indicator: 16 output LED Indicators
  • Rated current: Typical value: 500mA
  • Leakage current: 10uA Max
  • Output impedance：<200mΩ
  • Protection Over-temperature shutdown: typical value 135℃
  • Over-current protection: typical value 1.1A
  • Short circuit protection support

Description

The ODOT DT-222F is an I/O expansion module that supports 16 channels digital (source) output with 24 VDC voltage output and can be integrated with the ODOT Network Adapters.

The ODOT DT-222F can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.

ODOT D-Series
