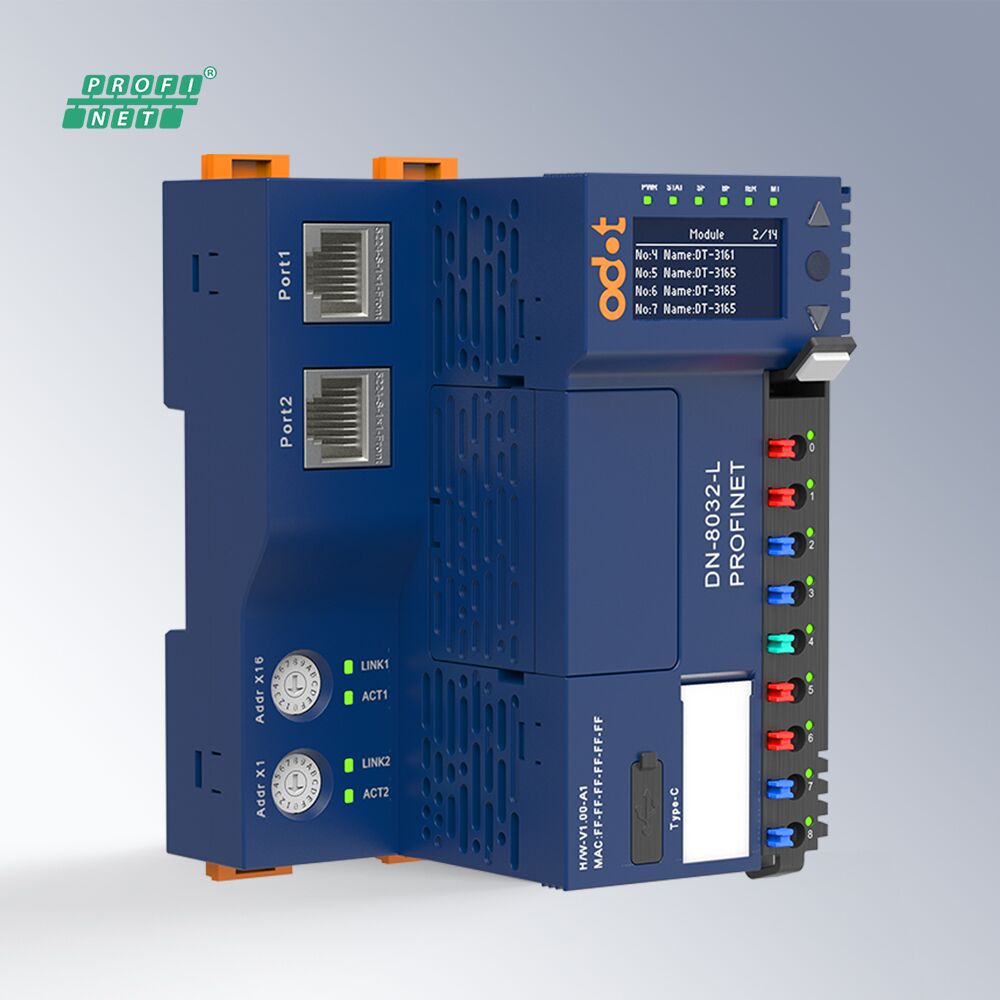

ODOT DN-8032-L PROFINET Network Adapter with Dual Network Port Switch

Description

The ODOT DN-8032-L Network adapter supports standard PROFINET protocol with dual network port switch. The DN-8032-L module does not support MRP media redundancy and redundant ring network. It supports RT real-time communication mode, RT real-time communication minimum period is 1ms.

The module supports up to 32 IO modules extension, the maximum input of process data is 1024 bytes and the maximum output is 1024 bytes, flexible  selection of IO modules to be paired with adapter.

The DN-8032-L supports communication diagnostics, extended module diagnostic function, with indicator lights such as operating status and communication status. It’s equipped with OLED screen that allow users to view the module related parameters and acquire important information without the need of software.

The ODOT DN-8032-L PROFINET I/O network adapter offers the flexibility to expand the I/O count of any existing or new automation or control system. There are a vast array of I/O modules that can monitor and control process signals such as volts, mA and temperature , or switches and digital signals; which makes the ODOT DN-8032-L I/O system easy to integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
