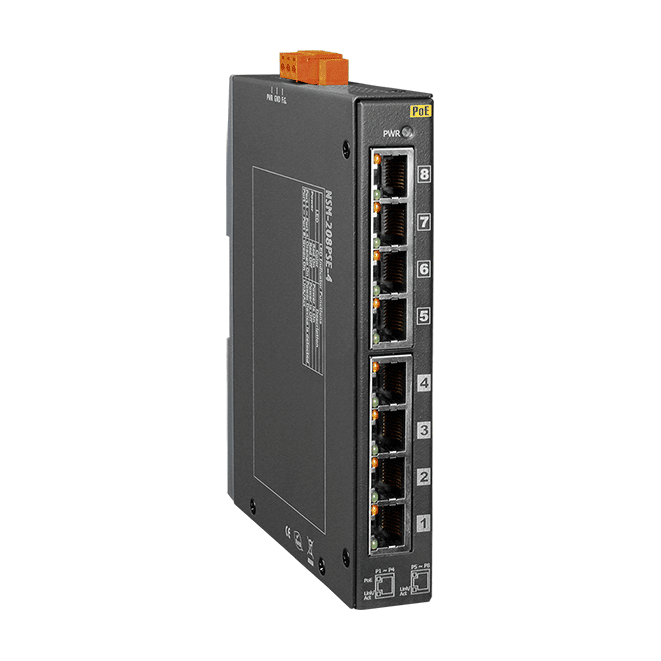

NSM-208PSE-4 8-port Industrial 10/100 Mbps Ethernet with 4-PoE (PSE) Switch with metal case

Name: NSM-208PSE-4 8-port Industrial 10/100 Mbps Ethernet with 4-PoE (PSE) Switch with metal case
Brand: simple
Availability: InStock

£289.00

Add to quote

Key Features

Each port supports both 10/100 Mbps speed auto negotiation
Full duplex IEEE 802.3x and half duplex backpressure flow control
Auto-detection of PD (powered devices) and automatic power management
Over-temperature, over-current and over/under-voltage detection
Automatic MDI/MDI-X crossover for plug-and-play
Store-and-forward architecture

Description
Datasheets

Description

The ICP DAS NSM-208PSE-4 is an 8-port unmanaged PoE (Power over Ethernet) Industrial Ethernet switch, it supports 4 PoE ports which are classified as power source equipments (PSE).

The NSM-208PSE-4 makes centralized power supply come true and provides up to 15.4 W of power per port. The NSM-208PSE-4 can be used to power IEEE802.3af compliant powered devices (PD) by Ethernet cable and eliminates the need for additional power wiring.

NS-208PSE_NSM-208PSE_NS-208PSE-4_NSM-208PSE-4_en
