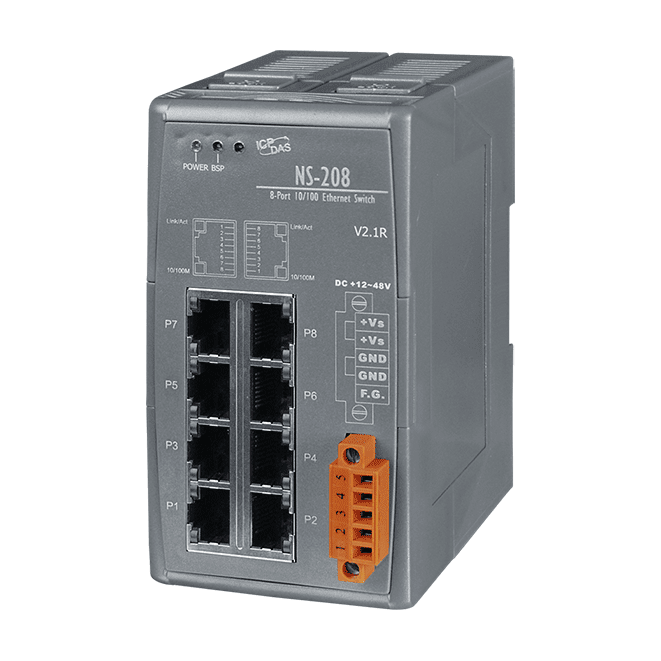

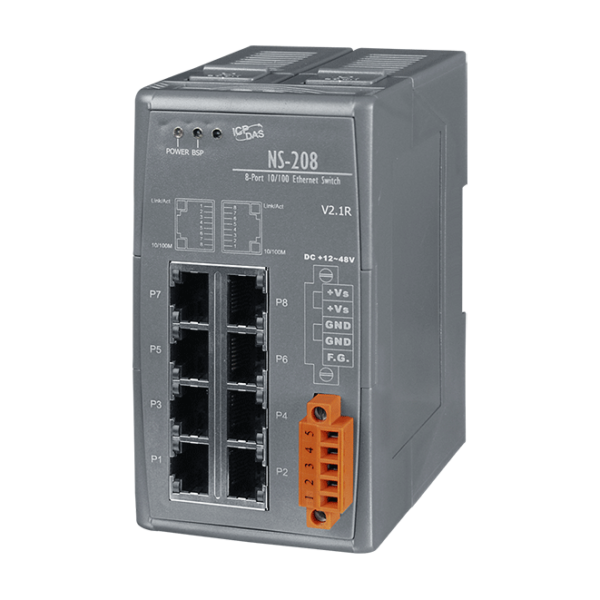

NS-208 Unmanaged 8-Port Industrial 10/100 Base-TX Ethernet Switch


Key Features

• Each port supports both 10/100 Mbps speed auto negotiation
• 8-port 10/100 Mbps
• Full duplex IEEE 802.3x and half duplex back-pressure flow control
• Automatic MDI/MDI-X crossover for plug-and-play
• 2 Gbps high performance memory bandwidth
•  Supports +10 ~ +30 VDC power input
•  DIN-Rail Mounting
• Supports operating temperatures from -40 °C ~ +75 °C


The ICP DAS NS-208 has 8 Ethernet ports that support 10/100 Base-TX, with a 10/100M auto negotiation feature and auto MDI/MDI-X function. All the Ethernet ports have memory buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly.

The ICP DAS NS-208 supports advanced network standards to optimise network performance, reduce maintenance costs, and secure network safety. The flow control mechanism is also negotiated and there is a link/data rate LEDs for each port to aid troubleshooting and also the port connectors are shielded RJ-45.
