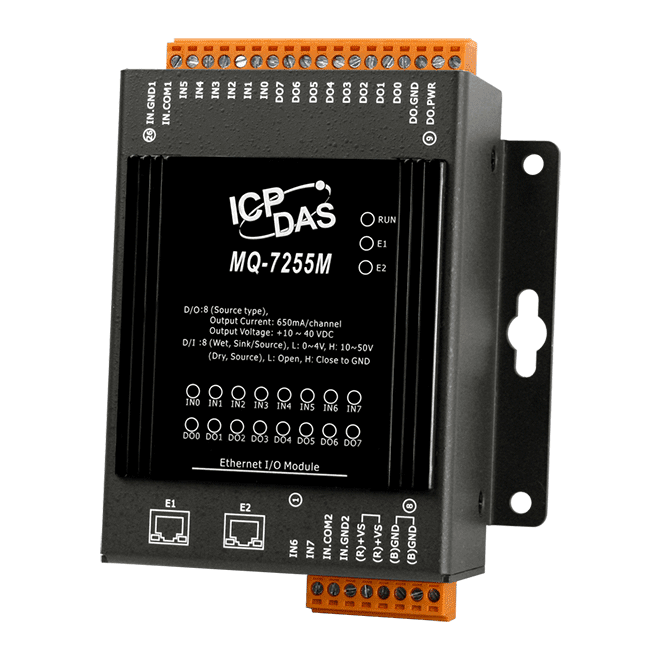

MQ-7255M MQTT I/O Module with 8-ch DI (dry, wet contact), 8-ch DO (source)
- Built-in Web Server
- Web HMI
- Support for MQTT Protocol
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
- Built-in I/O
- DI: 8 Channels
- DO: 8 Channels
The ICP DAS MQ-7255M is an Ethernet I/O device equipped with 8-channel DI (dry,wet) and 8-channel DO (source), and supports MQTT protocol for connecting with a variety of digital sensors in Industrial Internet of Things (IIoT) applications. A web-based user interface is provided to configure the module, monitor the network connection status and I/O status, and control digital output channels on the module via web browser on a mobile device or computer.
The MQ-7255M features optical isolation for 2500 VDC of transient over-voltage protection, but doesn’t provide channel-to-channel isolation. Each output channel can drive up to 650 mA load, together with configurable power-on value and safe value. This MQTT protocol I/O module can be safely used in applications where hazardous voltages are present.
