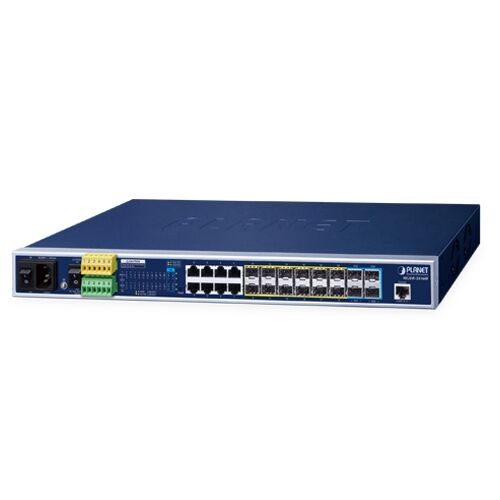

MGSW-24160F L2+ 8-Port 10/100/1000T + 12-Port 100/1000X SFP + 4-Port 10G SFP+ Managed Metro Ethernet Switch

£569.00

Key Features

  • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • 12 100/1000BASE-X mini-GBIC/SFP slots
  • 4 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP  transceivers
  • RJ45 to RS232 DB9 console interface for basic management and setup
  • Layer 3 IP Routing Features
  • Layer 2 Features
  • IP Routing Features
  • Digital Input and Digital Output
  • Quality of Service
  • Multicast, Security and management features

Description

The PLANET MGSW-24160F is a high-performance network switch perfect for enterprises and telecoms. It features IPv4/IPv6  Layer 3 static routing and robust L2/L4 switching capabilities, along with 8-Port 10/100/1000BASE-T, 12-Port 100/1000X SFP, and 4-Port 10G SFP+ configurations.

Enclosed in a rugged case, it ensures stable operation with a non-blocking fabric and wire-speed throughput of up to 120Gbps, maintaining flawless performance from 0 to 60 degrees C. Designed with “Front Access,” it allows easy maintenance when installed in cabinets, ideal for networks needing bandwidth upgrades.

High Performance 10Gbps Ethernet Capacity

The four SFP+ ports built in the MGSW-24160F boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 120Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports 4 speeds, 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

Redundant Ring, Fast Recovery for Critical Network Applications

The MGSW-24160F supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments.
