LRP-111U-KIT Industrial 1-Port 10/100TX 802.3bt PoE + 1-Port UTP Long Reach PoE Kit

£219.00

Add to quote

Key Features

  • Eliminates power cabling with PoE over UTP
  • Supports Power over Ethernet PSE (PoE Injector)
  • Power and Ethernet data transmission of 800m over UTP/STP cabling
  • Complies with IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt Power over Ethernet PD on RJ45 port
  • Supports Long Reach PoE power up to 70 watts (depending on power source and cable distance)
  • Supports PoE Power up to 60 watts (depending on power source and cable distance)
  • Auto detects remote powered device (PD)
  • Plug and Play; no PC required
  • -40 to 75 degrees C operating temperature
  • Compact size, DIN-rail and wall-mount design
CE FCC RoHS WEEE

Description

PLANET LRP-111U-KIT offers an industrial-grade Long Reach PoE solution with a Single-port PoE over UTP Extender Kit featuring long range data and power transmission for distance up to 800m (2,624ft.) over UTP/STP cable, and another Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3at/bt PoE.

The LRP-111U-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -40 to 75 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.

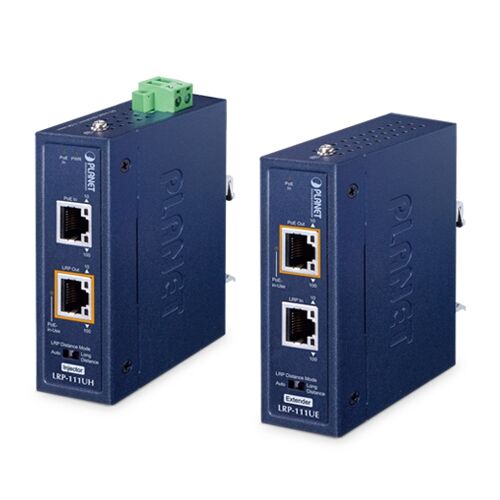

The LRP-111U-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure.

The LRP-111UH transmits data and power over UTP/STP cable to the LRP-111UE, which can be located as far as 800m away. It will then deliver the data and power output with a maximum of up to 60 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance.

Both of the two products come in a compact but rugged metal housing rated IP30 ,ensuring durability. Their wall-mounted design fits easily in any space-limited location.
