LRE-101 1-Port 10/100TX over UTP Long Reach Ethernet Extender

Description

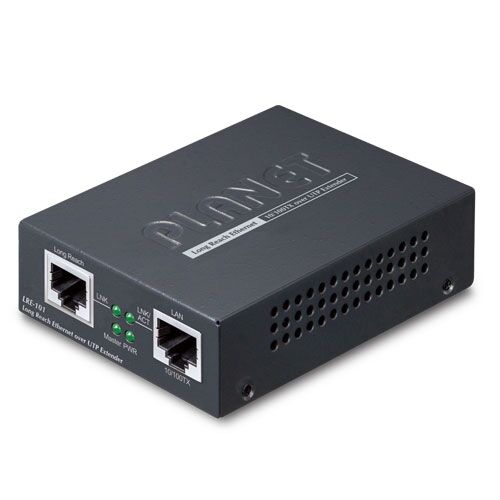

To fulfil the needs of long distance Ethernet over UTP or phone wire applications, PLANET Technology offers a new-generation Ethernet over UTP Extender, LRE-101. It features 1 10/100 BASE-TX RJ45 port and 1 UTP RJ45 connector with a compact-sized metal housing, making the placement of the unit convenient. the LRE-101 provides a total duplex data rate of 100Mbps which can extend a maximum distance of up to 1.2km It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the UTP cable or Phone wire to another 100-meter UTP cable for any type of IP network device such as HD IP camera, wireless access point, NVR and digital signage.

PLANET LRE-101 is also a Long Reach Ethernet (LRE) solution which provides a quick replacement and smooth migration solution from existing analog system to full digital system. A normal UTP cable can only be extended up to 100 meters, but with the LRE-101, the distance for Ethernet networking can be extended up to 700 meters (Cat.5E UTP) and 1200 meters (Phone wire), which is ideal for network applications such as Long-distance IP network devices, IP digital signage, cable TV to IPTV, Distance video education, Electronic billboards and other applications.

If you have Cat.5E UTP cable or Phone wire in your existing environment, you can install a pair of the LRE-101 very simply without the need to build additional network wires, thus saving costs for network construction.

The LRE-101 offers two operation modes, the client-side “Slave “and central-side “Master”, making any network applications easy and flexible. The “Slave” or “Master” mode can be adjusted by using the built-in DIP switch. For point-to-point connection, one LRE-101 in “Slave” mode and the other one in “Master” mode must be set up as a pair of converters to perform the connection. This enables the administrator to efficiently manage the network over UTP cable, making long-distance transmission better. The LRE-101 has a low power consumption of only 1.55 watts when in full operation.
