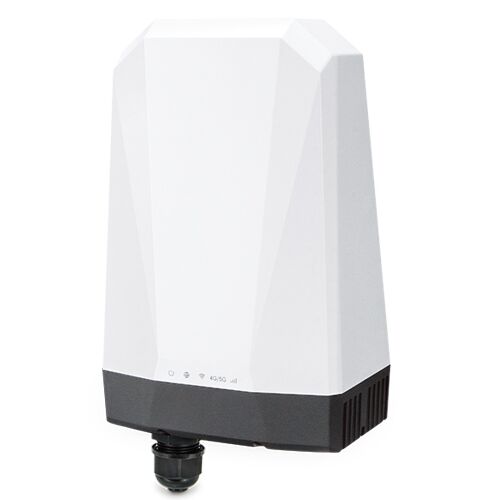

LCG-350W-NR-EU868 Industrial Outdoor LoRaWAN 5G NR Cellular Gateway (Sub-6 5G NR EAU, EU868 Sub 1G)

£959.00

Add to quote

Key Features

  • Supports global 5G NR (NSA/SA) and 4G LTE with a Nano-SIM card slot for reliable cellular access.
  • Compliant with IEEE 802.11b/g/n standards for wireless connectivity
  • Supports EU868, IN865, RU864, US915, AU915, KR920 and AS923 frequency bands for various regional applications
  • 8 programmable parallel paths for better data processing
  • 10/100BASE-T Ethernet LAN interface with 802.11at PoE+ support and built-in 1.5KV electromagnetic isolation protection
  • Built-in reverse phase, overvoltage, and lightning protection
  • Supports both 100-277V AC input and 802.11at PoE+ power
  • Integrated MQTT broker for efficient IoT data communication
  • Supports SSL VPN and robust hybrid VPN protocols (IPSec/PPTP/L2TP over IPSec) for secure data transmission
  • Features Stateful Packet Inspection (SPI) firewall and content filtering to block DoS/DDOS attacks and manage port range forwarding
  • Compatible with Planet NMS controller system and CloudViewerPro app for easy remote management and monitoring
  • Operates in -40°C to 75°C; IP67-rated for dust and water resistance
CE UKCA RoHS WEEE

Description

PLANET LCG-350W-NR is an Industrial-grade Outdoor 5G NR Cellular LoRaWAN Gateway with reliable connectivity for IoT deployments. It is able to provide ultra-fast broadband access with 5G cellular network.

The LCG-350W-NR offers seamless wireless connectivity through compliance with IEEE 802.11b/g/n standards and is optimized for diverse LoRa applications with support for multiple frequency bands. Thus, the LCG-350W-NR is perfect for diverse regional applications. It provides secure wired network access via a 10/100BASE-T Ethernet interface with PoE+ and built-in electromagnetic isolation protection.

The LCG-350W-NR is built to endure harsh conditions, featuring an IP67 rating for dust and water resistance and operating in a wide temperature range. It includes integrated power protection, an MQTT broker for IoT data communication, strong VPN security, and compatibility with remote management systems. The LCG-350W-NR is the ideal choice for secure, reliable, and flexible networking in any scenario.

The LCG-350W-NR is equipped with global positioning system feature. It adopts the 5G-NR technology that incorporates multiple global navigation systems (BDS/GPS/GLONASS/GALILEO/QZSS/SBAS). It helps to position location of cellular gateway based on a network of satellites that continuously transmit necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked.

C-LCG-350W-NR_L
