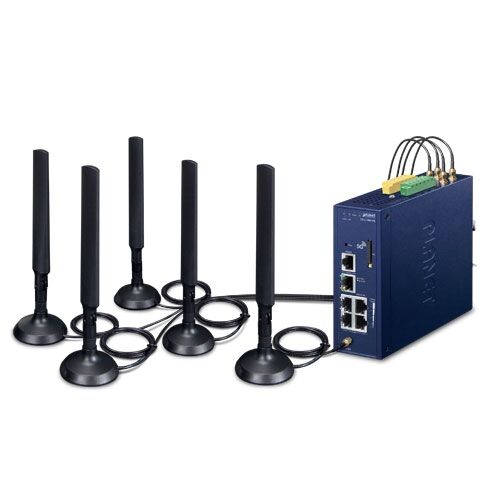

LCG-300-NR Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T (2* DI/DO, -40~75 degrees C & EU868 Sub 1G)


Key Features

  • Global 5G NR (NSA/SA)/4G LTE network with SIM design for cellular network redundancy
  • Automatic failover between 5G NR and Gigabit WAN
  • Supports EU868, US915, AS923 (Sub 1G)
  • 8 programmable parallel demodulation paths
  • 2 x DI/DO and 1 serial port (RS485) for Modbus applications
  • SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
  • Stateful packet inspection (SPI) firewall and content filtering
  • Blocks DoS/DDOS attack, port range forwarding
  • Planet NMS controller system and CloudViewer app supported
  • -45 to 75 degrees C operating temperature; DIN-rail and fanless designs


Connect to 5G NR and LoRa Network with Excellent LoRaWAN Cellular Gateway

PLANET LCG-300-NR is an industrial-grade 5G NR Cellular LoRaWAN Gateway with reliable connectivity for IoT deployments. It is able to provide ultra-fast broadband access with 5G cellular network.

The LCG-300-NR also features five Ethernet ports (4 LANs and 1 WAN), serial port (RS-485), and DI and DO interfaces designed in a compact yet rugged metal case. It establishes a fast 5G NR cellular connection between the Ethernet equipped devices. The LCG-300-NR is an integrated 5G NR and LoRaWAN solution for System Integrators, ISPs and Enterprises.

The LCG-300-NR LoRa wireless allows sensors to transmit data over extremely long ranges with low power consumption, and is  fully compatible with LoRaWAN protocol and supports connection with up to 300 end-nodes. It also provides pre-configured standard LoRaWAN frequency bands for different countries. PLANET LCG-300-NR is the best choice to help you to promote the implementation of AIoT network.

Automatic Failover between 5G NR and Dual WAN

With 5G NR, and dual Gigabyte Ethernet WAN interfaces, the LCG-300-NR ensures Internet connectivity by featuring failover functionality between 5G NR and dual WAN. It provides flexibility to set priority for 5G NR or dual WAN connection. When the main WAN interface fails, the secondary WAN interface will automatically back up the connection to ensure always-on connectivity.

Ultra-Fast Speed 4G/5G Network*

The LCG-300-NR supports 5G NR DL ( downlink) speeds higher than 2.4 Gbps and 4G LTE DL speeds of up to 1 Gbps. The wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. It also supports multi-band connectivity including LTE FDD/TDD, WCDMA and GSM for a wide range of applications.

*The real 5G NR/4G LTE data rate is dependent on local service provider.

GPS Included

The LCG-300-NR is equipped with (global positioning system) feature. It adapts 5G-NR technology to incorporate multiple global navigation systems (GPS/GLONASS/BeiDou/Galileo/QZSS). It helps to position location of cellular gateway based on a network of satellites that continuously transmits necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked.

LoRaWAN Compatibility

The LCG-300-NR is LoRaWAN compatible and make sure it works well with LoRa sensor without any problem. LoRaWAN is a low-power, wide area networking protocol built on top of the LoRa radio modulation technique. LoRaWAN networks and devices such as sensor and gateway allow public or private network to connect multiple applications such as IoT, M2M, smart city, sensor network, and industrial automation applications in the same space.


Ideal High-Availability VPN Security Router Solution for Industrial Environment

The LCG-300-NR provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the LCG-300-NR makes the connection secure, more flexible, and more capable.

Excellent Ability in Threat Defense

The LCG-300-NR has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the LCG-300-NR is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the LCG-300-NR offers an easy-to-use, platform independent management and configuration facility. The LCG-300-NR supports SNMP and it can be managed via any management software based on the standard SNMP protocol.

Maximizing Work Efficiency with PLANET SD-WAN Gateway

PLANET LCG-300-NR incorporated in SD-WAN (software-defined wide area network) function can greatly increase WAN optimization for multiple WAN links to be managed. With SD-WAN, users can connect any application across all available network connections at every site. It improves application performance and provides a high-quality user experience for increasing business productivity and reducing IT costs.
