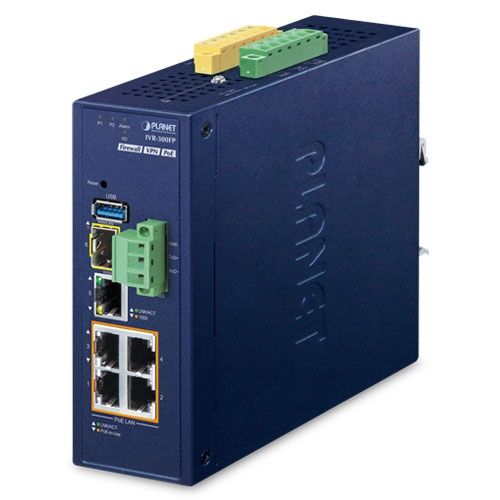

IVR-300FP Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T + 1-Port 1000X SFP VPN Security Gateway

Description

PLANET has launched the IVR-300FP Industrial VPN Security Gateway for demanding applications. It features five Ethernet ports (4 PoE LANs and 1 WAN/LAN), one Fiber port (WAN/LAN), serial port (RS485), and DI and DO interfaces. Incorporating SD-WAN function, it can greatly increase WAN optimization for multiple WAN links to be managed. Furthermore, its Dual-WAN Failover and Outbound Load Balance features can improve the network efficiency while the web-based interface provides friendly and user experience.

It’s ideal for the harsh environment as it can operate stably at temperatures from -40 to 75 degrees C. Its compact IP30 metal case allows either DIN-rail or wall mounting for efficient use of cabinet space.

The IVR-300FP provides both copper and fiber connectors for WAN interface. With one SFP slot, it supports fiber extension for FTTX application. It allows the administrator to flexibly choose the suitable SFP transceiver according to the transmission distance required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring centre in long distance.

To facilitate transportation and industrial-level applications, the IVR-300FP provides an integrated power solution with 48~54V DC voltages for worldwide operability. It also provides dual-redundant, reversible polarity 48~54V DC power supply inputs for high availability applications.
