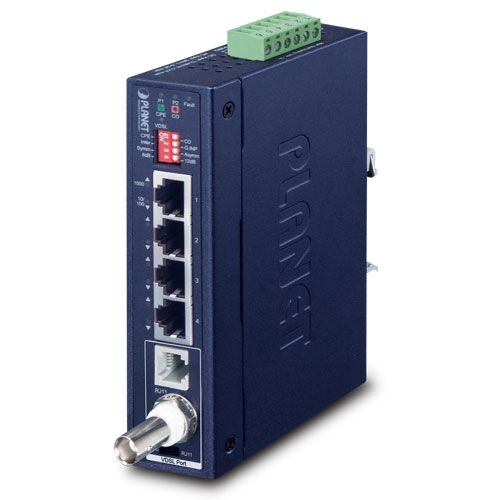

IVC-234GT Industrial 1-Port BNC/RJ11 to 4-Port Gigabit Ethernet Extender

Description

To fulfil the needs of long distance and higher speed required Ethernet over Coaxial or 2-wired UTP applications, PLANET Technology offers a new Industrial Ethernet Extender, IVC-234GT. It features one BNC port and one RJ11 port for long-distance connection with the VDSL2 (Very-high-bit-rate Digital Subscriber Line 2) technology, and 4 10/100/1000BASE-T RJ45 Ethernet ports. Its slim-sized metal housing makes the placement of the unit convenient. Working well with a pervasive coaxial or RJ11 network, the IVC-234GT provides an excellent bandwidth of up to a total duplex data rate of 300Mbps which can extend a maximum distance up to 1.2km.

If the IP network that consists of HD IP camera, wireless access point, NVR and digital signage display requires an extension of beyond the 100-meter distance, the IVC-234GT will be the best option as it can transmit data over the coaxial cable or telephone wire. A 100-meter distance can only be extended on an UTP cable.

The design of the IVC-234GT is based on the two-core networking technology, Gigabit Ethernet and VDSL2. The IVC-234GT offers a stable yet high-speed point-to-point network access up to a duplex data transmission of 300Mbps. It provides 2 selective transmission modes — asymmetric mode or symmetric mode — for the transmission of upstream and downstream signals. The Asymmetric mode – downstream up to 200Mbps and upstream up to 100Mbps and symmetric mode – downstream up to 150Mbps and upstream up to 150Mbps.

The IVC-234GT is also a Long Reach Ethernet (LRE) solution which provides a quick replacement and smooth migration solution from the existing analog system to full digital system.  It features two types of transmission, the coaxial or RJ11. A normal UTP cable can only be extended up to 100 meters, but with the IVC-234GT, the distance for Ethernet networking can be extended up to 1,200 meters (3,937ft.), which is ideal for network applications such as Long-distance IP network devices, IP digital signage, Cable TV to IPTV, Distance video education, Electronic billboards and other applications.
