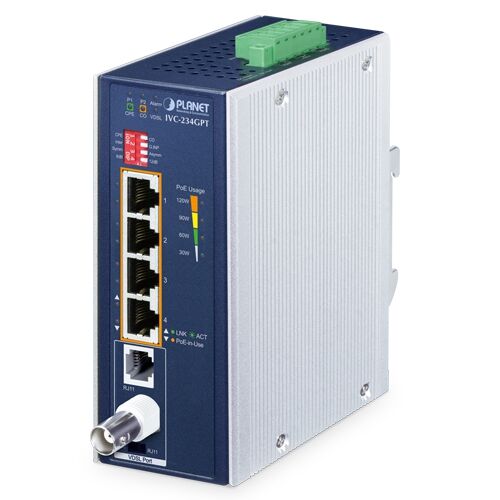

IVC-234GPT Industrial 4-Port 10/100/1000T 802.3at PoE+ to VDSL2 Extender

Description

To fulfil the needs of long distance and higher speed required Ethernet over Coaxial or phone wire applications, PLANET Technology offers the IVC-234GPT, a new-generation and high-performance Gigabit Ethernet-over-VDSL2 Extender with the brand-new VDSL2 Super Vector 35b profile.

It features 4 10/100/1000BASE-T RJ45 ports with 802.3at PoE+ injector function, 1 RJ11 female phone jack and 1 BNC female connector. Its IP30 aluminium housing makes the placement of the unit convenient. The IVC-234GPT is based on the coaxial and two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2).

The VDSL2 technology offers distance extension and signal conversion by transmitting the Ethernet data from the coaxial cable to another 100-meter UTP cable for various IP network devices such as HD IP cameras, wireless access points, NVRs and digital signage. It also offers the fastest data transmission speed over the existing copper telephone lines without the need of rewiring.

The IVC-234GPT works well with a pervasive coaxial or telephone line network with downstream/upstream data rate of up to 200/200Mbps symmetric and 300/100Mbps asymmetric over a distance of 300m, making a maximum VDSL2 distance reach of up to 1.4km.

The IVC-234GPT provides an excellent bandwidth demand for the triple play devices for entertainment and communication. With the asymmetric data transmission of 306/60Mbps (G.INP, Asym, 8dB), the IVC-234GPT enables many multi-media services to work on the local Internet, such as VoD (video on demand), voice over IP, video phone, IPTV, Internet caching server, distance education, which is ideal for the following network applications such as long-distance IP network devices, IP digital signage, cable TV to IPTV, distance video education, electronic billboards and other applications.
