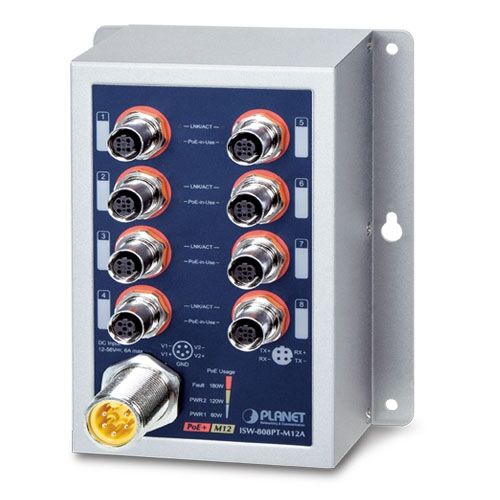

ISW-808PT-M12A Industrial 8-Port 10/100TX M12 802.3at PoE+ Switch

Description

PLANET ISW-808PT-M12A is an industrial-grade robust and vibration-proof PoE+ switch for a wide range of applications in factories or moving trains as it guarantees a reliable performance under vibration and shock. It features eight 10/100BASE-TX auto-negotiation dustproof M12 connectors with IEEE 802.3at PoE+ injector function; each PoE+ port provides 36 watts of PoE output. The M12 connector provides tight and strong connection, and ensures stable Ethernet operating performance withstanding humidity, dirt, dust, shock, vibrations, heat and cold. The compact, IP50-rated metal case of the ISW-808PT-M12A allows either DIN-rail or wall mounting for efficient use of cabinet space.

To facilitate the 802.3at PoE usage with commonly-used 12~54V DC power input for transportation and industrial-level applications, the ISW-808PT-M12A adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.

The ISW-808PT-M12A helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the ISW-808PT-M12A has three orange LEDs indicating 60W,120W and 180W of PoE power usage.

The flow control function enables the ISW-808PT-M12A to provide fast and reliable data transfer. All of the M12 RJ45 copper interfaces in the ISW-808PT-M12A support 10/100Mbps auto-negotiation for optimal speed detection through RJ45 Category 3, 4, 5, 5e, 6 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
