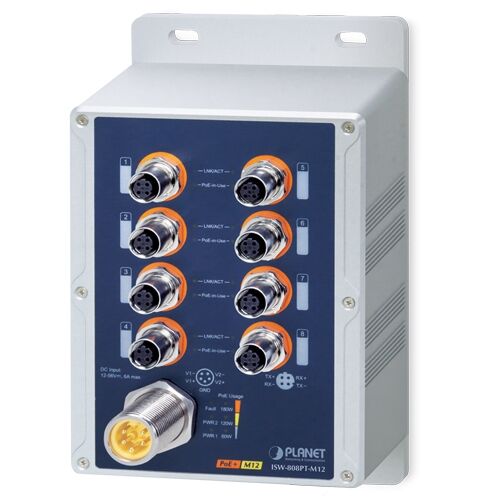

ISW-808PT-M12 Industrial IP67 8-Port 10/100TX M12 802.3at PoE+ Switch

£499.00

Key Features

  • 8-port 10/100BASE-TX with waterproof/dustproof M12 connectors
  • IEEE 802.3at PoE+ injector function
  • Supports PoE power up to 36 watts for each PoE port
  • IP67-rated aluminium case
  • Layer 2 Features
  • Dustproof and fanless designs
  • DIN-rail and wall-mount installation
  • Redundant power design
  • Supports 6KV DC Ethernet ESD protection
  • Supports 6KV surge protection
  • Operating temperature ranges from -40~75˚C
CE FCC RoHS WEEE

Description

PLANET ISW-808PT-M12 is an industrial-grade robust and vibration-proof PoE+ switch for a wide range of applications in factories or moving trains as it guarantees a reliable performance under vibration and shock. It features eight 10/100BASE-TX auto-negotiation waterproof/dustproof M12 connectors with IEEE 802.3at PoE+ injector function; each PoE+ port provides 36 watts of PoE output.

The M12 connector provides tight and strong connection, and ensures stable Ethernet operating performance withstanding humidity, dirt, dust, shock, vibrations, heat and cold. The compact, IP67-rated aluminium case of the ISW-808PT-M12 allows either DIN-rail or wall mounting for efficient use of cabinet space.

To facilitate the 802.3at PoE usage with commonly-used 12~54V DC power input for transportation and industrial-level applications, the ISW-808PT-M12 adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.

The ISW-808PT-M12 has 2K MAC address table and offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 1.6Gbps internal switching fabric and featuring auto negotiation support in each Fast Ethernet port, the ISW-808PT-M12 can handle large amounts of data in a secure topology linking to a backbone or high capacity servers.
