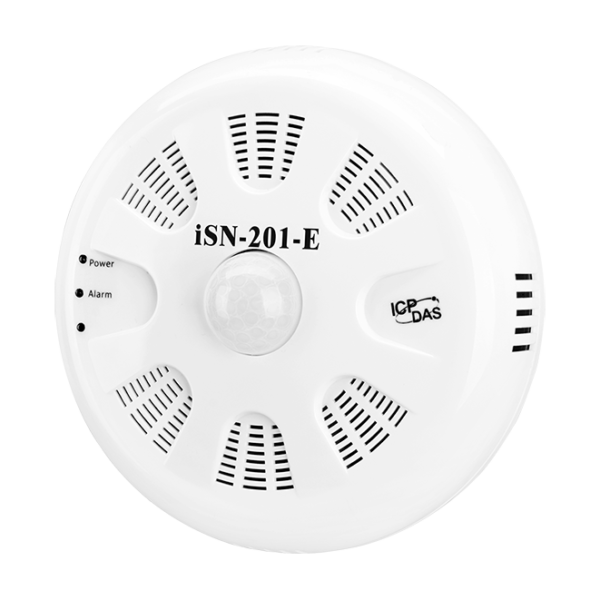

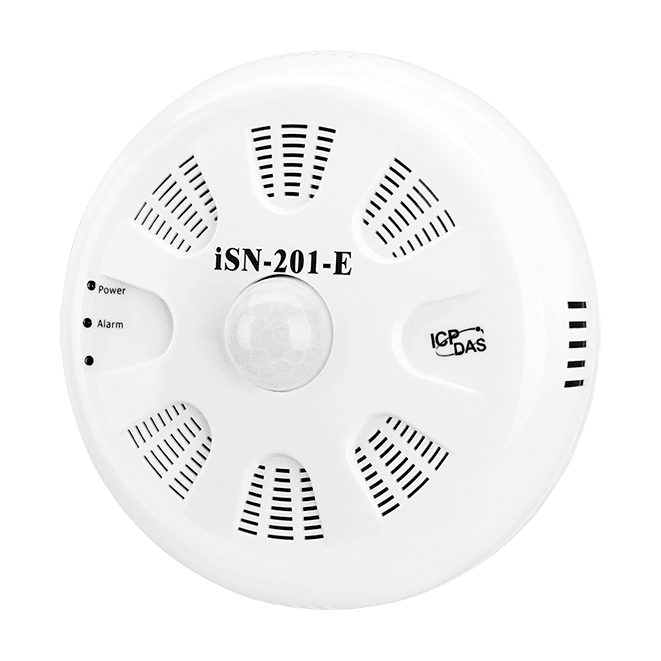

iSN-201-E Illuminance, Temperature and Humidity Sensor Module (with RS-485 & Ethernet interface)

iSN-201-E Illuminance, Temperature and Humidity Sensor Module (with RS-485 & Ethernet interface)

£149.00

Add to quote

Key Features

  • Illuminance Measurement Range: 0 to 20,000 Lux
  • Temperature Measurement Range: -20 to +60°C
  • Humidity Measurement Range: 0 to 100% RH
  • Supports the DCON and Modbus RTU/TCP Protocols
  • Supports the MQTT Protocol for Ethernet Interface
  • Includes RS-485/Ethernet Communication Interfaces
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • Supports Web Confi guration and Firmware Update via Ethernet
  • Compatible with IEEE802.11b/g/n standards (iSN-201-WF only)
  • Support infrastructure and limit-AP modes for wireless networks (iSN-201-WF only)
  • Ceiling Mounting
CE UKCA FCC RoHS WEEE

Description

The ICP DAS iSN-201 series modules can be used for measuring indoor illumination, temperature and humidity. A wide range of interface connections can be selected to suit individual needs, including RS-485 and Ethernet models. The iSN-201-E provides support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/ central control systems.

The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The white minimalist exterior design ensures that it easy to match with interior decoration.

Applications

The WISE-5231 and electric curtain combination with the illumination meter iSN-201-E can easily be setup through a simple web interface and logic control. The two-way interlocking mode integrates the electric curtains and the Building Management System (BMS), and collects environmental sensing data simultaneously. When detecting the indoor temperature or humidity rises or the intensity of sunshine is strong, it will automatically activate the pulling motion of the electric curtain, or enable a personalized scenario to control all curtains or specific curtain combinations in the home environment. In addition, the user can edit the scenario and set up the curtain automation at scheduled times.

iSN-201 Application

iSN-201-E_iSN-201-WF_en
