IHD-420PR Video Wall 4K/60 HDMI & USB over IP Receiver with PoE
£449.00
Key Features
- 4K ultra high-quality video transmitter with refreshing 60 frames per second
- Supports IR extension for controlling video source
- Supports RS232 bi-directional remote extension
- Assigns video sources to any monitor of the video wall system
- Supports USB for KVM PC control
- IEEE 802.3af/at PoE+ function supported; no additional power supply needed
- Supports 802.1X function (Future feature)
- Automatic EDID (Extended Display Identification Data) configuration
- Friendly Web UI for ease of use
- Supports multi-casting group with Gigabit Ethernet Managed Switch (IGMP snooping and Jumbo Frame functions required)
Description

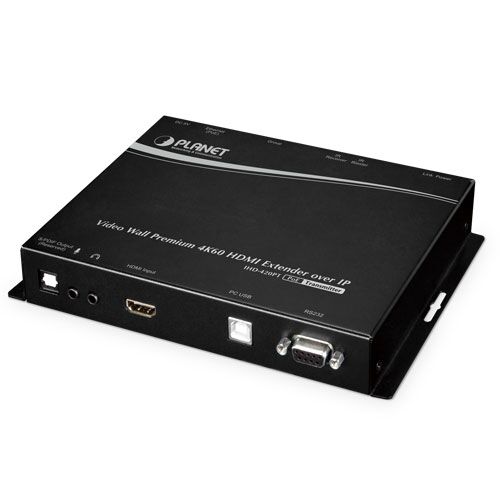

PLANET IHD-420 HDMI/USB Extender Video Wall over IP with PoE delivers a great 4K video distribution solution with refreshing 60 frames per second , waking an efficient and effective advertising deployment. The IHD-420 series is the combination of the transmitter, IHD-420PT, and the receiver, IHD-420PR. They can be used as an audio, video and IR extender over IP, and applied to point to point, point to multi-point, multi-point to multi-point and eye-catching video walls of up to 16 by 8 displays.
IR Extension for Controlling Video Source
The IHD-420 series is a perfect solution for audio and video signal extension via the Gigabit LAN. Designed with IR transmitter and receiver interface, it allows users to control the video source at the terminal destination. The IHD-420 series features bi-directional IR extension and RS232 pass-through which allow users to cascade the system enabling them to extend the transmission distance without signal loss or delay.
They come with USB interfaces, which support basic KVM applications, such as touch screens, keyboards and mice, enabling users to achieve KVM PC control easily. Besides, with PoE function, there is no additional power supply needed, and the IHD-420 series thus reduces the complexity of cable installation.
Exclusive Video Transmission by IGMP Snooping Technology
One IHD-420PT at the local site can drive multiple IHD-420PRs at remote sites without adding extra load to the network. Integrated with a Gigabit PoE switch that includes IGMP snooping functions, the IHD-420 series allows for selectable channels, enabling simultaneous transmission of video and audio. IGMP snooping is a crucial component of IP multicast, serving as a communication protocol for hosts and adjacent routers on IP networks to establish multicast group memberships. This functionality is ideal for one-to-many and many-to-many networking applications, such as online streaming and gaming, facilitating exclusive transmission and more efficient resource utilization.
