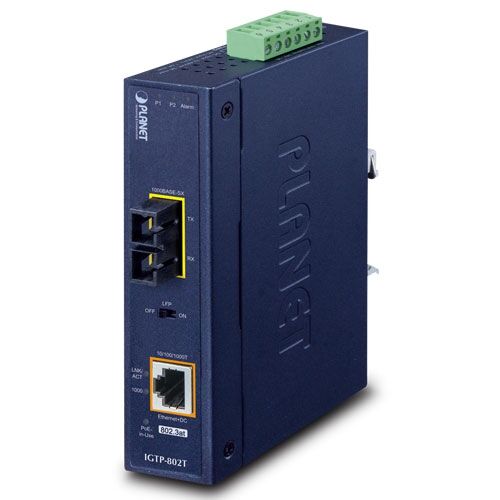

IGTP-802TS 1000BASE-LX to 10/100/1000BASE-T 802.3at PoE+ Industrial Media Converter (SC,SM) -20km

£139.00

Add to quote

Key Features

  • 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af /802.3at PoE+ Injector
  • 1 1000BASE-SX/LX SC Fiber interface (IGTP-802T/IGTP-802TS)
  • 1 SFP port, supporting 1000BASE-X and 100BASE-FX transceiver dual mode (IGTP-805AT)
  • Complies with IEEE 802.3at/af PoE Plus end-span PSE
  • 1 IEEE 802.3at/af device powered
  • Supports PoE Power up to 30.8 watts for PoE port
  • Provides DC 52V power over RJ45 Ethernet cable to PD with Ethernet port
  • IP30 metal case
  • DIN-rail or wall-mount design
  • 12 ~ 48V DC/24V AC redundant power
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
CE UKCA FCC RoHS WEEE

Description

The PLANET IGTP-802TS Industrial Gigabit Media Converter combines Ethernet media conversion (from 1000BASE-X to 10/100/1000BASE-T) with 802.3at Power over Ethernet Plus (PoE+) injector to deliver both up to 30 watts of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required.

Its 1000BASE-X fiber optic uplink port provides long distance, high speed and stable data transmission to a remote core network. The special and convenient power system of the IGTP-802TS supports 12~48V DC power input or 24V AC power input for power redundancy and operational flexibility.

Being able to operate under the temperature ranging from -40 to 75 degrees C and with an IP30 rugged case that allows either DIN-rail or wall mounting to have the efficient use of cabinet space.

The IGTP-802TS is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets.

C-IGTP-80xTv3_L
