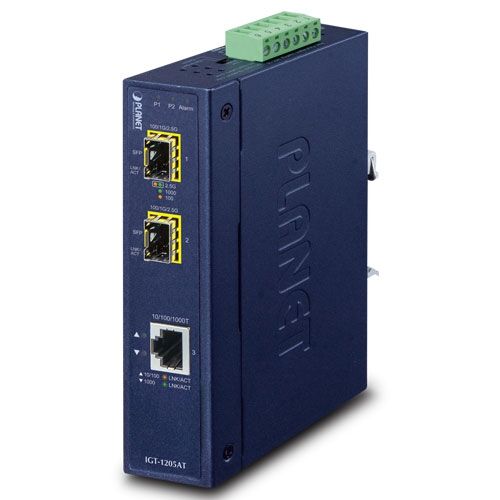

IGT-1205AT Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter

£139.50

Key Features

  • 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
  • 2-port SFP, supporting 100/1000/2500BASE-X transceiver type auto detection
  • Slim IP30 metal case
  • DIN-rail, wall-mount or side wall-mount design for redundant power design
  • Redundant Power Design
  • 12 to 48V DC, redundant power with reverse polarity protection
  • AC 24V power adapter acceptable
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
CE UKCA FCC RoHS WEEE

Description

The PLANET IGT-1205AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment.

It is equipped with one 10/100/1000BASE-T RJ45 copper port and two 100/1000/2500BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGT-1205AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.



Fiber-Optic Link Capability Enables Extension of Network Deployment

The two SFP ports are compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 300 meters (Multi-mode fiber cable) to 20/40/80/120 kilometers (Single-mode fiber cable), and also the Fast Ethernet distance can be extended from 2km (Multi-mode fiber cable) to 20/40/60 kilometers (Single-mode fiber cable). They are well suited for applications within the factory data centers and distributions.
