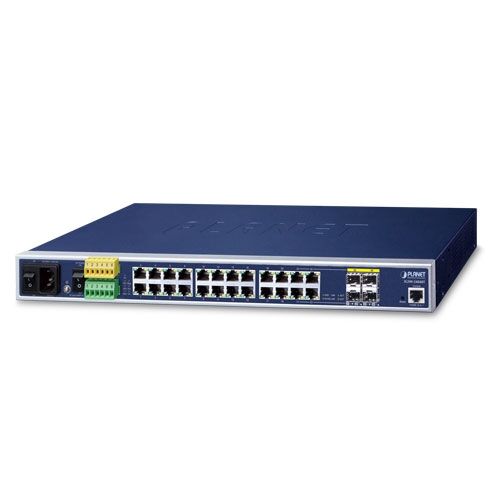

IGSW-24040T Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo Managed Ethernet Switch

£549.00

Add to quote

Key Features

  • 24-port 10/100/1000BASE-T RJ45 copper
  • 4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100BASE-FX SFP
  • RJ45 to RS232 DB9 console interface for basic management and setup
  • Supports maximum 32 static routes and route summarization
  • 2 Digital Input (DI) & 2 Digital Output (DO)
  • One 100 to 240V AC or dual 36 to 60V DC power input, redundant power with reverse polarity protection
  • 19-inch rack-mountable design
  • IP30 metal case
  • Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature for DC power input
  • -10 to 60 degrees C operating temperature for AC power input

Description

PLANET IGSW-24040T, an industrial Layer 2+ managed Gigabit Switch, features 24 10/100/1000Mbps ports and 4 shared SFP ports, and supports static Layer 3 routing in a 1U case. With a total switch fabric of 48Gbps, the IGSW-24040T can handle large amounts of data in a secure topology linking to an industrial backbone or high capacity servers.

The IGSW-24040T is capable of providing non-blocking switch fabric and wire-speed throughput in the temperature range from -40 to 75 degrees C without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore, it adopts user-friendly “Front Access” design for easy wiring and maintenance of the IGSW-24040T when placed in the cabinet.

The IGSW-24040T supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

The IGSW-24040T supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.





C-C-IGSW-24040Tv4_L
