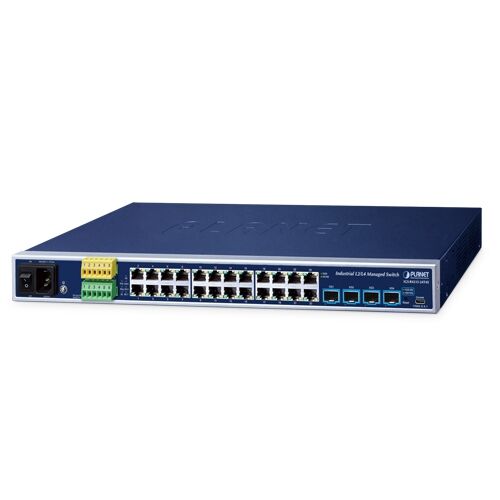

IGS-R4215-24T4X Industrial L2/L4 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

IGS-R4215-24T4X Industrial L2/L4 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

£776.00

Add to quote

Key Features

  • 24*10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • 4*10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP  transceivers
  • One USB Type C console interface for basic management and setup
  • 1*100 to 240V AC or dual 24 to 60V DC power input, redundant power with reverse polarity protection
  • 19-inch rack-mountable design
  • IP30 metal case
  • Supports EFT protection for 6KV DC power and 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature for DC power input
  • -10 to 60 degrees C operating temperature for AC power input
CE FCC RoHS WEEE

Description

The PLANET IGS-R4215-24T4X is PLANET’s latest Industrial-grade, Rack-mount L2/L4 Managed Gigabit Switch, designed for heavy industrial environments in a 1U fanless design. With IPv6/IPv4 dual stack management, and a built-in L2/L4 Gigabit switching engine, this switch delivers an array of versatile features for industrial settings.

Featuring 24 10/100/1000BASE-T ports, 4 10GBASE-X SFP+ fiber slots and a USB Type C console port, the IGS-R4215-24T4X ensures unwavering, stable performance. Operating flawlessly and quietly within a temperature range of -40 to 75 degrees Celsius, it showcases remarkable adaptability.

The four SFP+ ports built in the IGS-R4215-24T4X boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports 4 speeds, 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

The IGS-R4215-24T4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments.

C-IGS-R4215-24T4X_L
