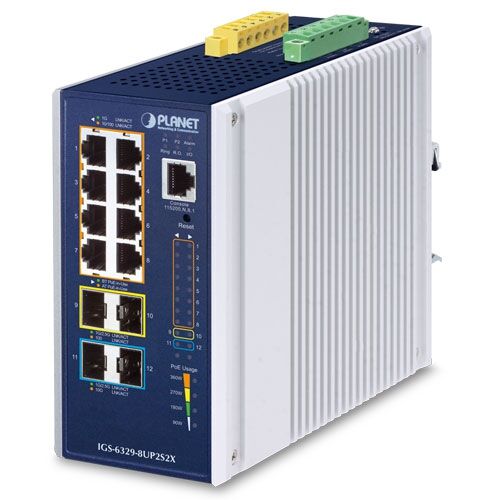

IGS-6329-8UP2S2X Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

£769.00

Key Features

  • 8* 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with 802.3bt PoE++ Injector function
  • 2* 100/1000/2500BASE-X SFP slots for SFP type auto detection
  • 2* 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-X & 2500BASE-X SFP
  • One RJ45-to-RS232 console interface for basic management & setup
  • Layer 3 IP routing features
  • Quality of service
  • 2*Digital input & 2* digital output channels
  • DIN-rail and wall-mountable design
  • IP30 aluminum case
  • Supports ESD 6KV DC Ethernet protection
  • -40 to 75 degrees C operating temperature
CE FCC RoHS WEEE

Description

With EN 61000-6-2 and 61000-6-4 Heavy Industrial EMC, and railway EN 50121-4 certified design, and complying with the IEEE 802.3bt PoE++ technology, the PLANET IGS-6329-8UP2S2X provides non-stop data communication and reliable PoE injection, even with noise interferences coming from the heavy industrial field applications.

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, the PLANET IGS-6329-8UP2S2X L3 Industrial Managed PoE++ Switch series features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts, two 100/1000/2500BASE-X SFP and up to two 10G SFP+ ports interfaces in a rugged IP30 metal case for stable operation in heavy industrial demanding environments.

It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports, 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

With the supported Modbus TCP/IP protocol, the IGS-6329 Series can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables the administrator to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.
