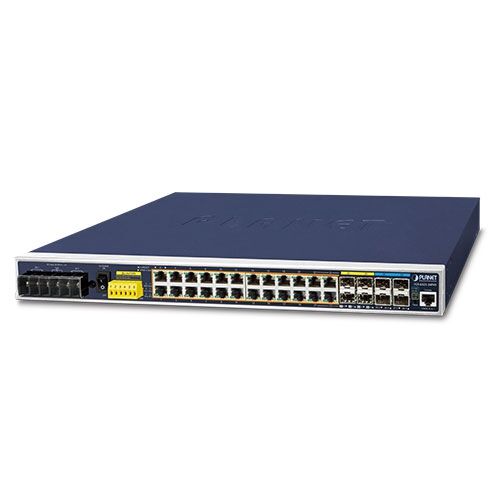

IGS-6325-24P4X Industrial L3 24-Port 10/100/1000T-802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch

£749.00

Add to quote

Key Features

  • 24 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
  • 4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100BASE-FX SFP
  • 4 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
  • RJ45 to RS232 DB9 console interface for basic management and setup
  • Modbus TCP for real-time monitoring in the SCADA system
  • Supports IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
  • The IP30 metal housing is designed to be rack-mountable in a 19-inch rack
  • The front-accessible and fan-less design enables convenient access and quiet operation
  • Dual 48~54V DC power input with reverse polarity protection
  • -40 to 75 degrees C operating temperature

Description

PLANET IGS-6325-24P4X L3 Industrial Managed PoE+ Switch features 24 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, 4 shared SFP ports and 4 10G SFP+ ports in a 1U case. With 10Gbps uplink, the IGS-6325-24P4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers.

It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 OSPFv2 dynamic routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.

The IGS-6325 Series supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.
