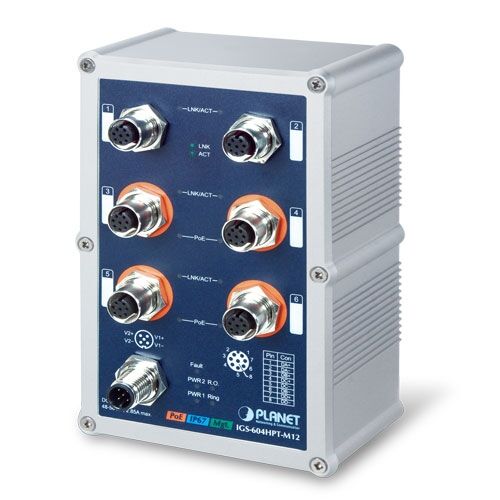

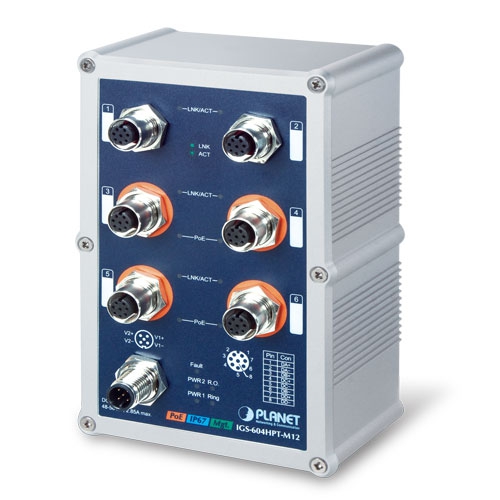

IGS-604HPT-M12 Industrial IP67 Rated 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Managed Ethernet Switch

Description

PLANET IGS-604HPT-M12, an Industrial Layer 2+ Managed Ethernet Switch, comes with an IP67-rated industrial case, 4-port 10/100/1000T 802.3at PoE, 2-port 10/100/1000T, and static Layer 3 routing, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. The IGS-604HPT-M12 can be easily mounted on a DIN rail or wall taking up less space.

Each of the four Gigabit PoE+ ports provides 36 watts of power, which means a total power budget of up to 144 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It also provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

The IGS-604HPT-M12 is equipped with a 6-port 10/100/1000BASE-T auto-negotiation waterproof and dustproof M12 connector with 4-port IEEE 802.3at PoE+ (Port 3 to Port 6); each PoE port provides 36-watt PoE output. The M12 connector provides tight and strong connection and guarantees stable Ethernet operation performance under high vibration and shock environment and ensures it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

The IGS-604HPT-M12 features a strong dual power input system (Dual 48V~56V DC) incorporated into customer’s automation network to enhance system reliability and uptime. For example, when DC Power 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-604HPT-M12 via DC Power 2 alternatively without any loss of operation.

The IGS-604HPT-M12 allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow. Though most NVR or camera management software offers SMTP email alert function, the IGS-604HPT-M12 further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.
