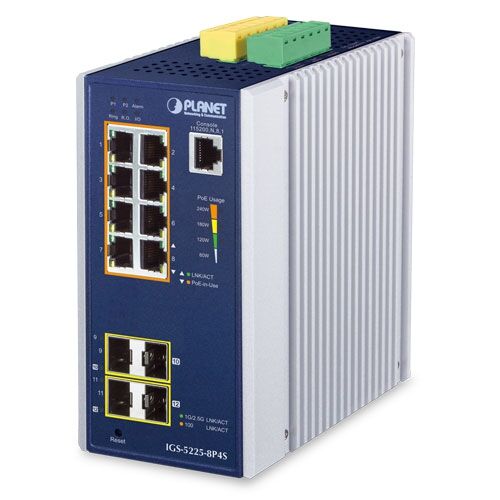

IGS-5225-8P4S Industrial L2+8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch

£559.00

Key Features

  • 8* 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ injector function
  • 2* 100/1000BASE-X SFP ports for SFP type auto detection
  • 2* 100/1000/2500BASE-X SFP ports for SFP type auto detection
  • One RJ45 console interface for basic management and setup
  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
  • Layer 3 IP routing features
  • Quality of service
  • DIN-rail and wall-mountable design
  • IP30 aluminium case
  • Supports ESD 6KV DC Ethernet protection
  • -40 to 75 degrees C operating temperature
CE FCC RoHS WEEE

Description

The PLANET IGS-5225-8P4S PoE L2+Industrial Managed PoE+ Switch, featuring eight 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, two 100/1G BASE-X SFP ports and two 100/1000/ 2500 BASE-X SFP ports in an IP30 rugged metal case, can be installed in any difficult environment.

It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 static routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.

The IGS-5225-8P4S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

The IGS-5225-8P4S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.

C-IGS-5225-8P Series_v2.0_L
