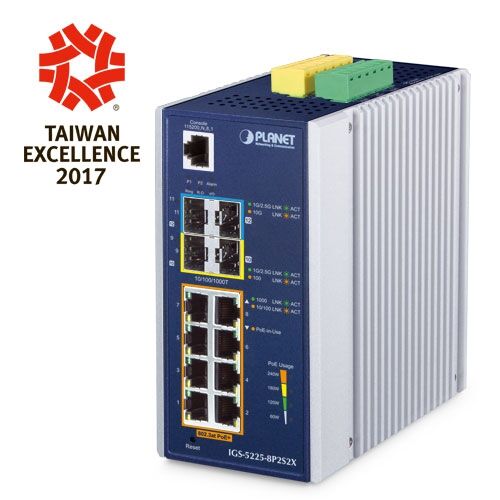

IGS-5225-8P2S2X Industrial L3 8-Port 10/100/1000T 802.3at PoE + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

£549.00

Key Features

  • 8*10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
  • 2*100/1000/2500BASE-X mini-GBIC/SFP slots for SFP type auto detection
  • 2*10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
  • One RJ45 console interface for basic management and setup
  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
  • Layer 3 IP routing features
  • Quality of service
  • DIN-rail and wall-mountable design
  • IP30 aluminium case
  • Supports ESD 6KV DC Ethernet protection
  • -40 to 75 degrees C operating temperature
CE FCC RoHS WEEE

Description

The PLANET IGS-5225-8P2S2X is the smallest 10G uplink Layer 3 managed PoE switch preferably designed for industrial networks. Based on its 10Gbps big pipe connectivity to core networks, the IGS-5225-8P2S2X, equipped with 8 Gigabit ports featuring 36-watt 802.3at PoE+ and two 10Gbps SFP+ uplink slots, meets the demands of high power consumption and high bandwidth for 11ac Gigabit Wi-Fi APs and other PoE applications like those requiring heavy traffic loading.

With a rugged IP30 metal case and wide temperature range from -40 to 75 degrees C, the IGS-5225-8P2S2X is able to stably operate in heavy Industrial demanding environments. Thus, the IGS-5225-8P2S2X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. The IGS-5225-8P2S2X also allows either DIN-rail or wall mounting for efficient use of cabinet space.

The IGS-5225-8P2S2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a ring network, the recovery time of data link can be as fast as 10ms.

The IGS-5225-8P2S2X helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. The front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 60W, 120W, 180W and 240W of PoE power usage.
