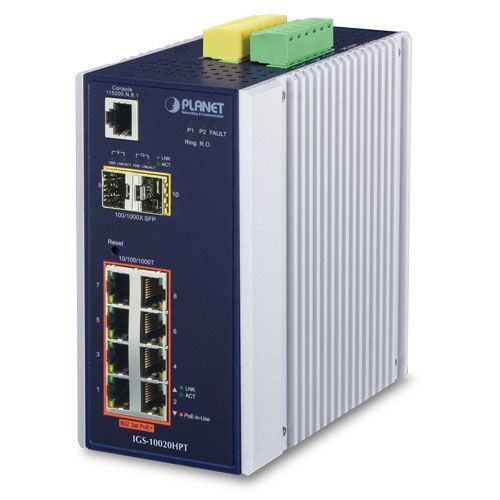

IGS-10020HPT-U Industrial 8-port 10/100/1000T 802.3at PoE + 2-port 1G/2.5G SFP Managed Switch with USB Console
£529.00
Key Features
- 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
- 2 100/1000/2500BASE-X mini-GBIC/SFP slots for SFP type auto detection
- One RJ45 console interface for basic management and setup (IGS-10020HPT)
- One USB console interface for basic management and setup (IGS-10020HPT-U)
- E-Mark certification
- Modbus TCP for real-time monitoring in a SCADA system
- IEEE 1588v2 PTP (Precision Time Protocol)
- IP30 aluminum case protection
- DIN-rail or wall-mount design
- Redundant power design:
– 12 to 48V DC (IGS-10020HPT)
– 12 to 54V DC (IGS-10020HPT-U) - Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Description
The PLANET Industrial 8-port Gigabit 802.3at PoE+ Switch, IGS-10020HPT series, is equipped with a rugged IP30 metal case for stable operation in heavy industrial environments. Thus, the IGS-10020HPT series provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.
The IGS-10020HPT series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments.
The IGS-10020HPT series also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network was interrupted accidentally, the fault recovery times could be less than 50ms to quickly bring the network back to normal operation.
Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-10020HPT series can be placed in almost any difficult environment. The IGS-10020HPT series also allows either DIN rail or wall mounting for efficient use of cabinet space.
