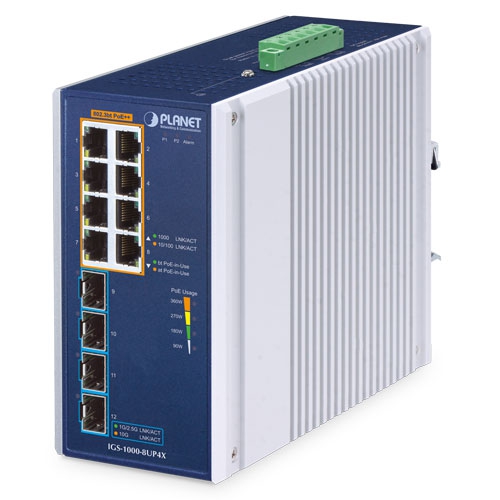

IGS-1000-8UP4X Industrial 8-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Ethernet Switch

£489.00

Key Features

  • 8 10/100/1000BASE-T RJ45 copper ports
  • 4 10GBASE-X SFP+ slots, compatible with 1000BASE-X and 2500BASE-X SFP
  • Complies with IEEE 802.3bt PoE++ type 4 PSE
  • Backward compatible with IEEE 802.3at PoE+
  • Up to 8 ports of IEEE 802.3bt/at devices powered
  • Up to 360-watt PoE budget
  • Supports PoE power up to 95 watts for each PoE port
  • IP30 aluminum case
  • DIN-rail and wall-mount designs
  • Fault alarm for power input failure
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
  • 4 real-time PoE power usage indicators
  • 48~54V DC redundant power with reverse polarity protection
CE UKCA FCC RoHS WEEE

Description

Featuring Plug and Play designed and 10G SFP+ uplink ports to be installed in heavy industrial environments, PLANET IGS-1000-8UP4X Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet Switch features eight 10/100/1000BASE-T ports and IEEE 802.3bt PoE++ (Power over Ethernet Plus Plus) injector function to deliver up to 95 watts of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required. Its four 1G/2.5G/10GBASE-X SFP+ fiber optic uplink ports provide long distance, high speed and stable data transmission to a remote core network.

The IGS-1000-8UP4X is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 360 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy.
